Flite Apex Trail 27.5″ Boost

NZ incl GST $1,500 NZ incl GST $950

Sale!

Flite Apex Trail 27.5″ Boost

NZ incl GST $1,500 NZ incl GST $950

Category:

This pair of wheels has been used for a photoshoot and a few demo rides.  They’re in excellent condition: The rims are straight and true with no dents.  The front rim has two small stone chip marks and the rear wheel has a scuff on non-driveside of the Flite panel and on the driveside of the Wheelworks text.  We’ve tried to capture these small imperfections in the photos.

Front hub: Wheelworks Dial Pro 110x15mm Boost (Torquecaps for Rockshox Pike and Lyrik forks are available separately)

Rear hub: Wheelworks Dial Pro 148x12mm Boost, 72 points of engagement.   Your choice of Shimano or XD freehub body

Spokes: DT Swiss Competition

Rims: 27.5″ / 650b  DT Swiss (30mm internal width)

Tubeless tape and light weight tubeless valves included.

Warranty:  Our normal warranty applies for the correct intended use.  Spokes and build are guaranteed for life, 1 year defect warranty on the rims, lifetime defect warranty on hubs.

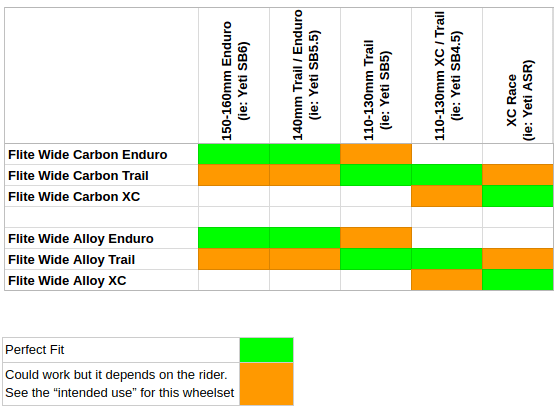

Intended use:

This wheelset is designed to partner with a 110-130mm Trail frame for aggressive trail riding on mixed terrain.

If your thing is using a Trail frame for chairlifts, Enduro racing, or hucks to flat check out the Enduro version of this wheelset with specially reinforced rims to handle all your gnar.

UPDATE: this wheelset was recently used for a photo shoot, and now has eagle-gold decals, please email us on sales@wheelworks.co.nz for more details.

Tubeless

Tubeless allows lower tyre pressure, more grip, and less punctures.  It’s a no-brainer.

Tubeless rimtape is fitted and a pair of light weight CNC aluminium tubeless valves is supplied.  Our attention to detail extends to the tubeless valves: serrated lockrings makes them easy to fit or remove and integrated wrench-flats are provided for super-tight valves.  The valve cores are removable for easy cleaning or for assistance while installing difficult tubeless tyres.  The inner section of the valve is optimised for our rims ensuring an easy air-tight fit.



Intended Use

This wheelset is designed to partner with a 110-130mm Trail frame for aggressive trail riding on mixed terrain.

If your thing is using a Trail frame for chairlifts, Enduro racing, or hucks to flat check out the Enduro version of this wheelset with specially reinforced rims to handle all your gnar.

Warranty

Aluminium Rims

Unlike with our carbon Flite rims we do not design and produce our own aluminium rims – instead we choose the best rims from various suppliers which meet our wheelset needs.

The simple truth is that, all things being equal, aluminium rims are not as strong or durable as carbon.  Our carbon Flite rims have a lifetime warranty which includes impact damage but aluminium rims will dent when whacked hard enough and will eventually wear out.  Think of aluminium rims, especially the rear rim which takes the bulk of abuse, like a cassette:  You’ll get plenty of use and if you treat it with respect, it will last a very long time, but eventually it will wear out and will need to be replaced.

Spokes – Lifetime warranty

The most common cause of broken spokes is poor wheelbuild quality. We go to painstaking lengths to accurately measure each and every rim and hub we build before calculating spoke lengths and cutting and rolling spokes to 0.1mm accuracy.

Spokes Nipples – Lifetime warranty

We have a lifetime guarantee against broken spokes and spoke nipples and we wouldn’t offer this we weren’t 100% confident in aluminium nipples and our ability to build a wheel using them.

Aluminium nipples save weight (just under a gram each) but get a bad reputation for three reasons – they seize to the spoke, they break, and they round-out where the spoke key turns them (generally because of reason #1)

We mitigate the risks of using aluminium and we don’t see problems with them. First we de-burr the inside of the spoke holes of aluminium rims: This means there are no burrs from drilling and it also helps to countersink the rim slightly to match the profile of the nipple. We then use a special grease on the spoke thread and the contact between the nipple and rim. This grease lasts a very long time and means the nipples won’t corrode to the stainless steel spoke.

Generally aluminium nipples break because of two reasons: the wheel wasn’t well-built, or the spoke was too short. Again, to mitigate these problems we measure the ERD (effective rim diameter) and flange geometry of every wheel I build, including combinations we’ve done previously as the ERD will vary by 1mm or so. We have custom software which calculates the spoke length very accurately, even going so far as to take into account how much the spokes will stretch due to their tension which is different on either side of the wheel because of the offset flanges. We then cut each spoke and roll it’s threads on a Japanese made machine. Our spoke lengths are accurate to around 0.1mm meaning the spoke sits flush with the top of the nipple ensuring all threads are engaged on the nipple and not placing the nipple under tensile loading.

After Sale Support

Our commitment to you doesn’t end once we’ve got your money:  If you have any questions maintaining or servicing your wheelset we’re here to help.  Just get in touch.

Each wheel we build is engraved with a unique number and we keep detailed records dating back over 10 years tracking not just who built your wheels but minute details like spoke length, pre-stress procedure, and even what type of grease was used between the spoke and nipple.
