Erase Hubs: Precision Engineering Meets Practical Design
What initially drew attention to Erase hubs was their clean design and use of high-quality materials. The result is a lightweight, durable hubset with excellent aesthetics—and while they’re not inexpensive, they represent strong value for the level of engineering and performance on offer.
Let’s take a closer look at what makes these hubs stand out
Two Platforms: Road & Mountain
Erase offers two hub platforms: one tailored for road and gravel bikes, and another for mountain bikes. Functionally they’re quite similar, but the designs vary to suit each discipline’s visual and technical demands. Both are e-bike compatible, which is a welcome feature.

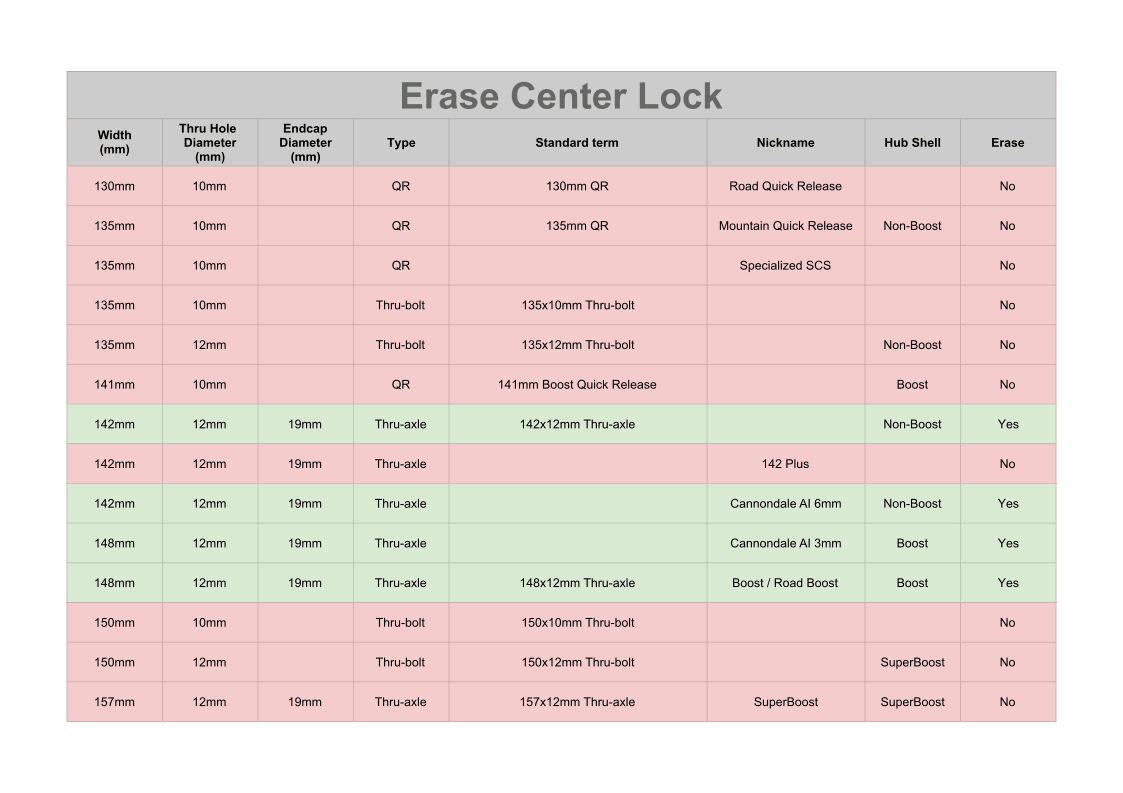

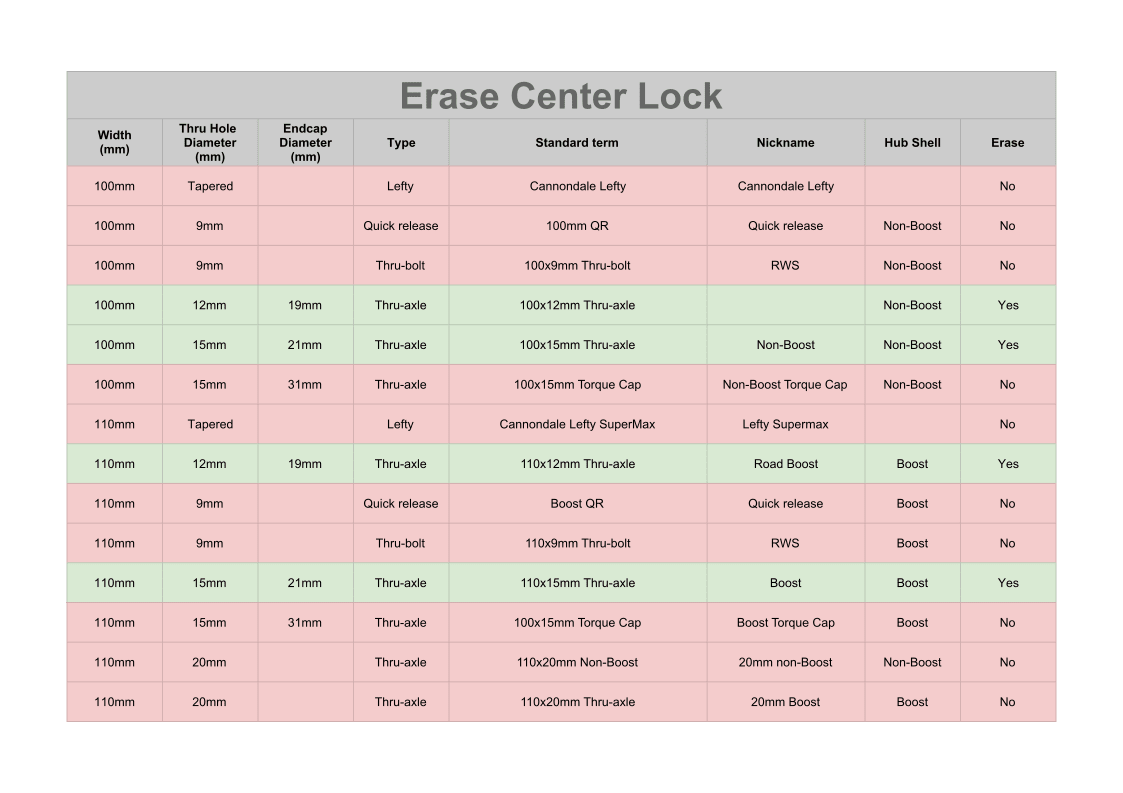

Road/gravel: Available in 100x12mm and 142x12mm (non-Boost), centerlock only

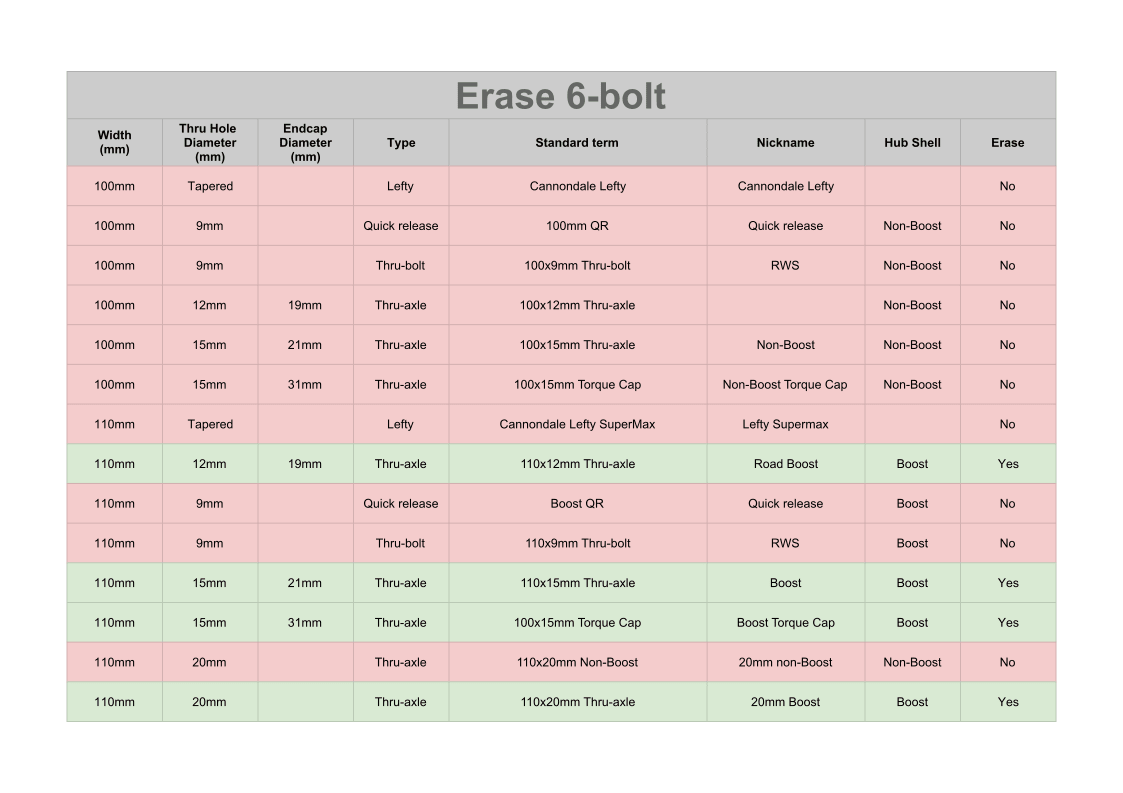

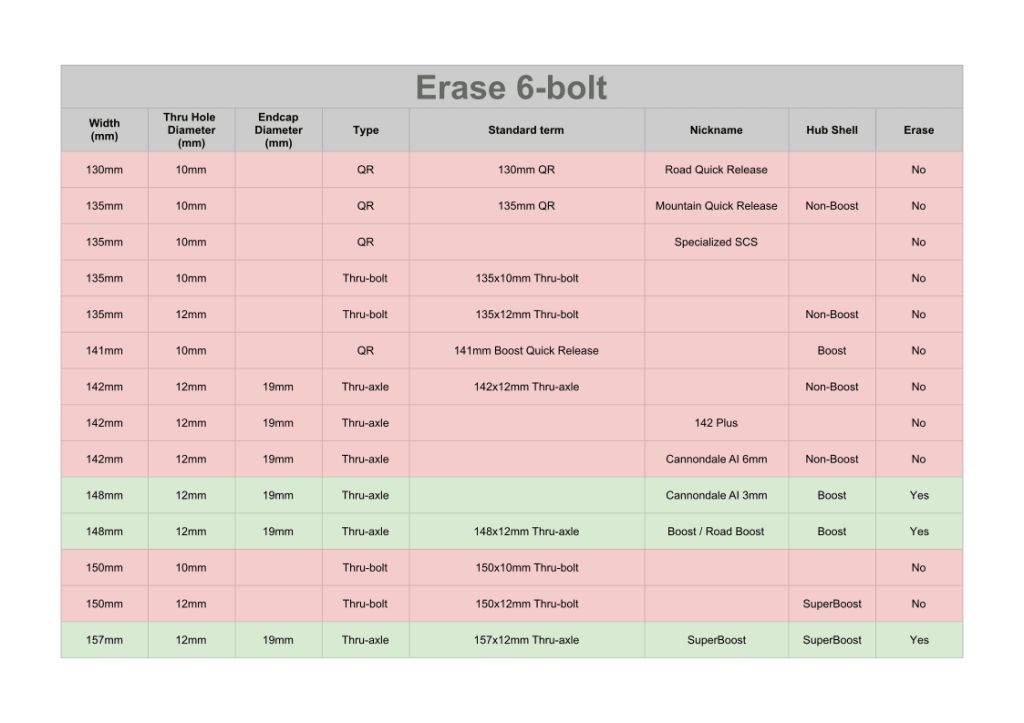

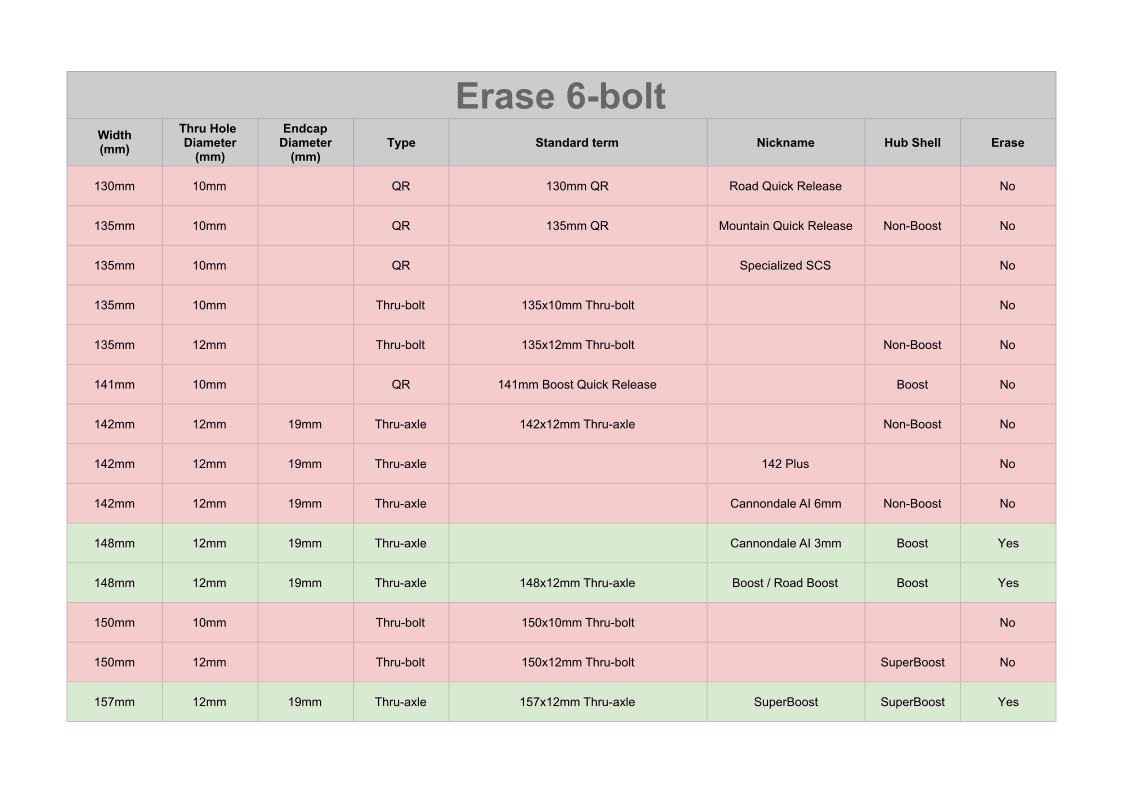

Mountain: Options for 110x15mm and 110x20mm Boost front, and 148x12mm Boost or 157x12mm SuperBoost rear. Centerlock or 6-bolt rotor options
Note: No quick release options are available
Spoke and Flange Compatibility

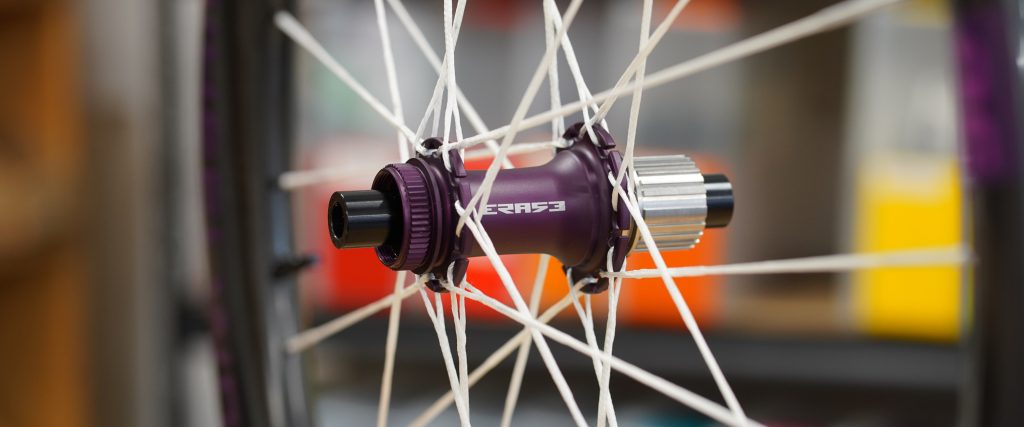

Both road and MTB hubs come in J-bend, straight-pull, and hook flange configurations, with a wide range of spoke counts. This flexibility is excellent for custom wheelbuilding—ideal for use with Berd spokes or pairing with dynamos like the SON 29s.

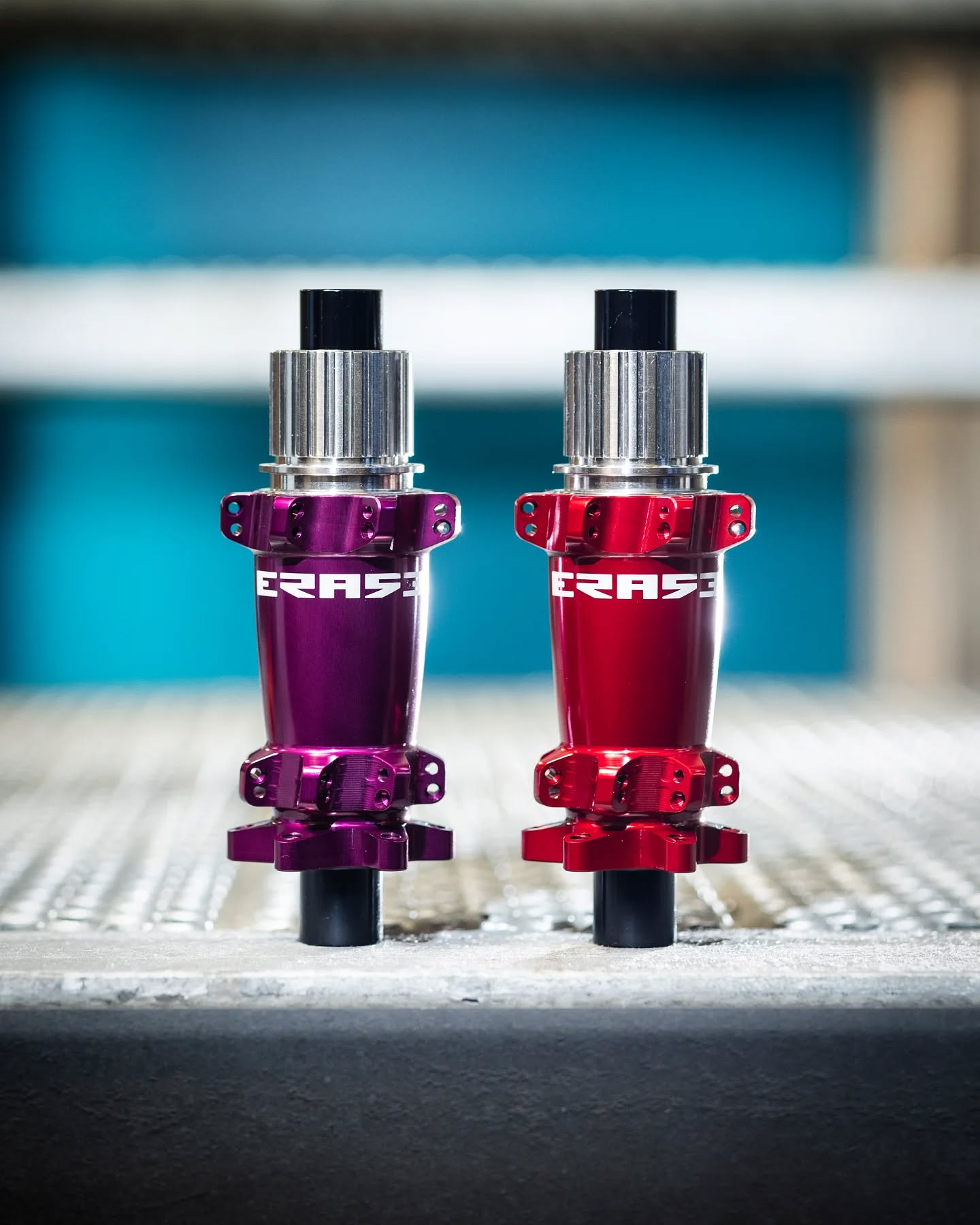

Colours and Finish
Hubs are available in silver, black, purple, red and orange.
J-bend and straight-pull hubs are a traditional shiny anodized colour and hook-flange hubs are matte in colour.

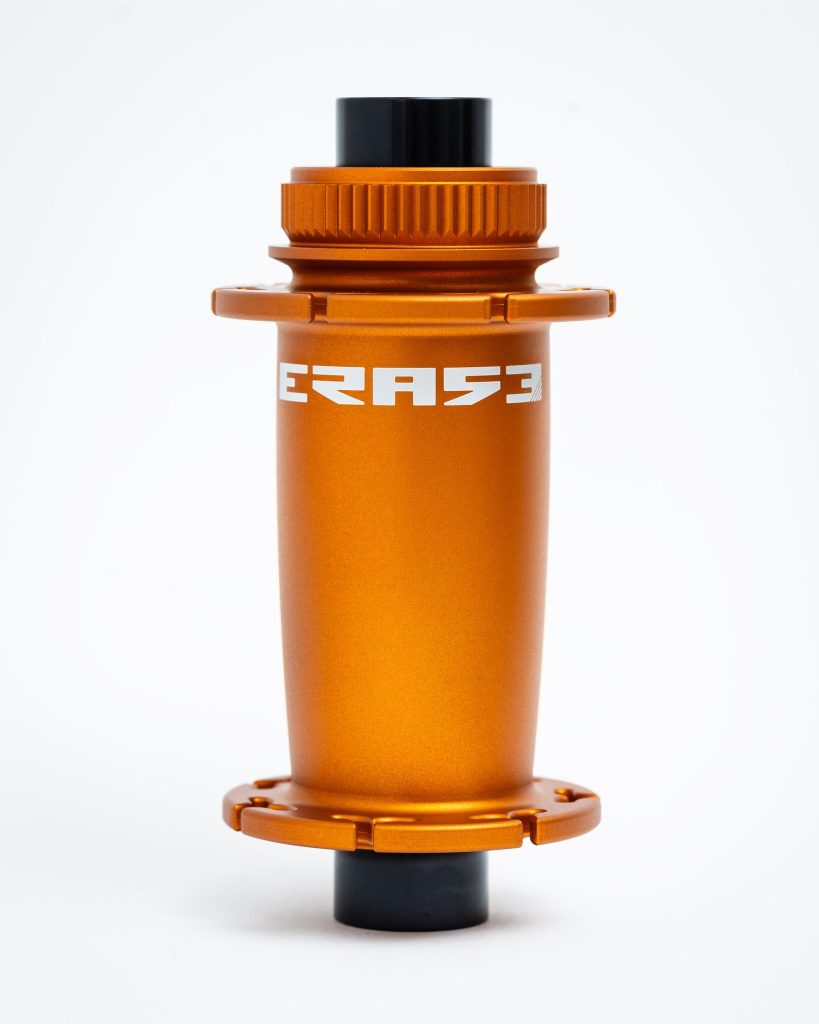

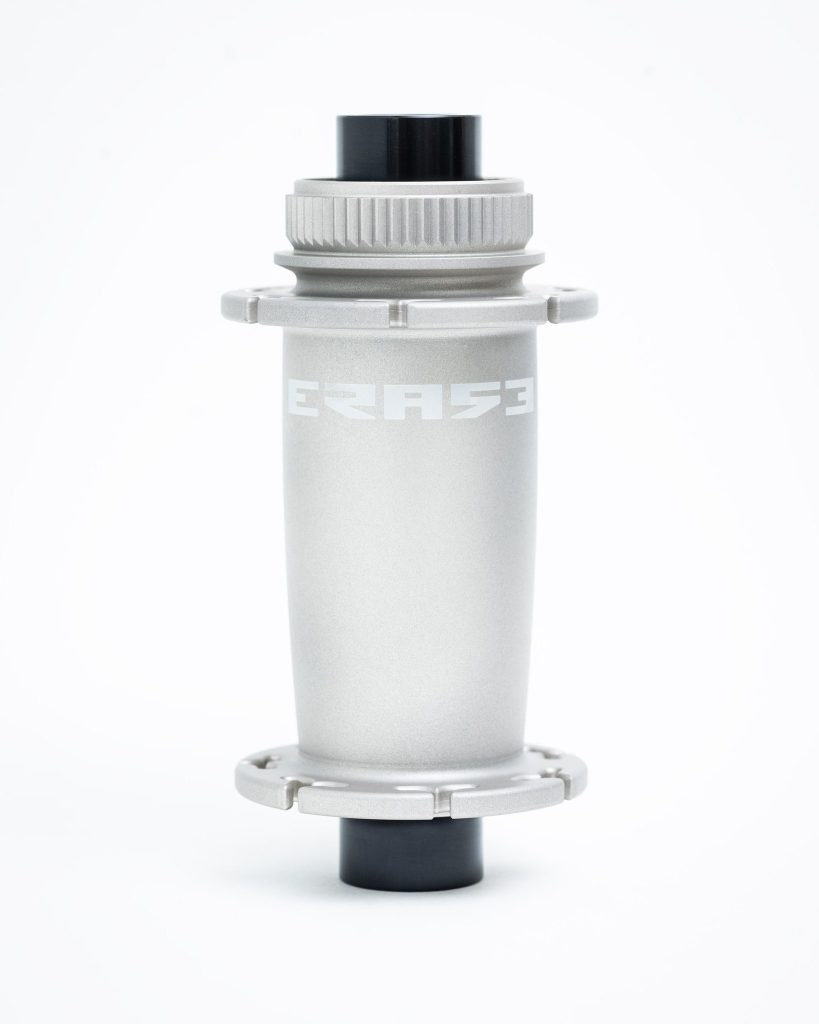

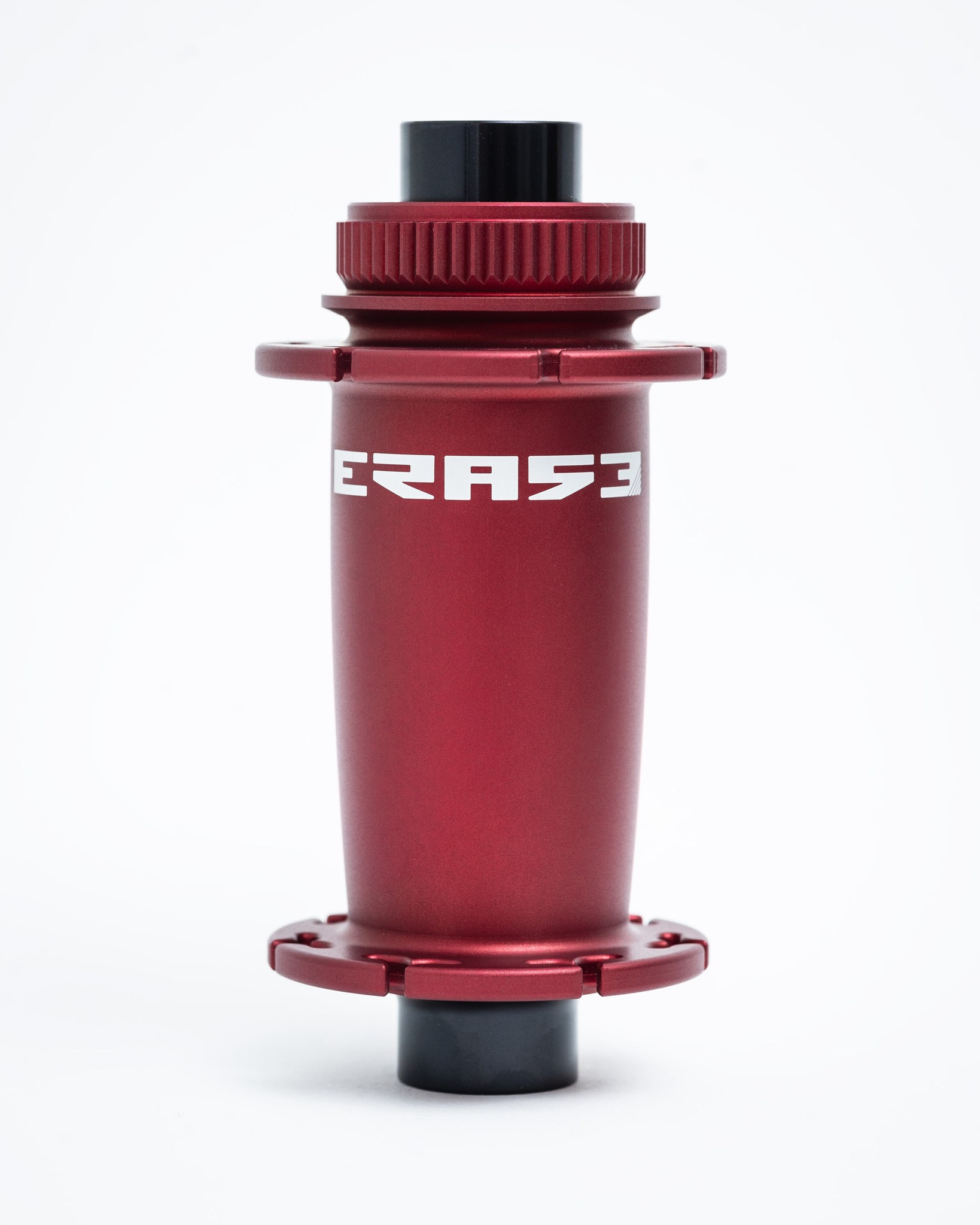

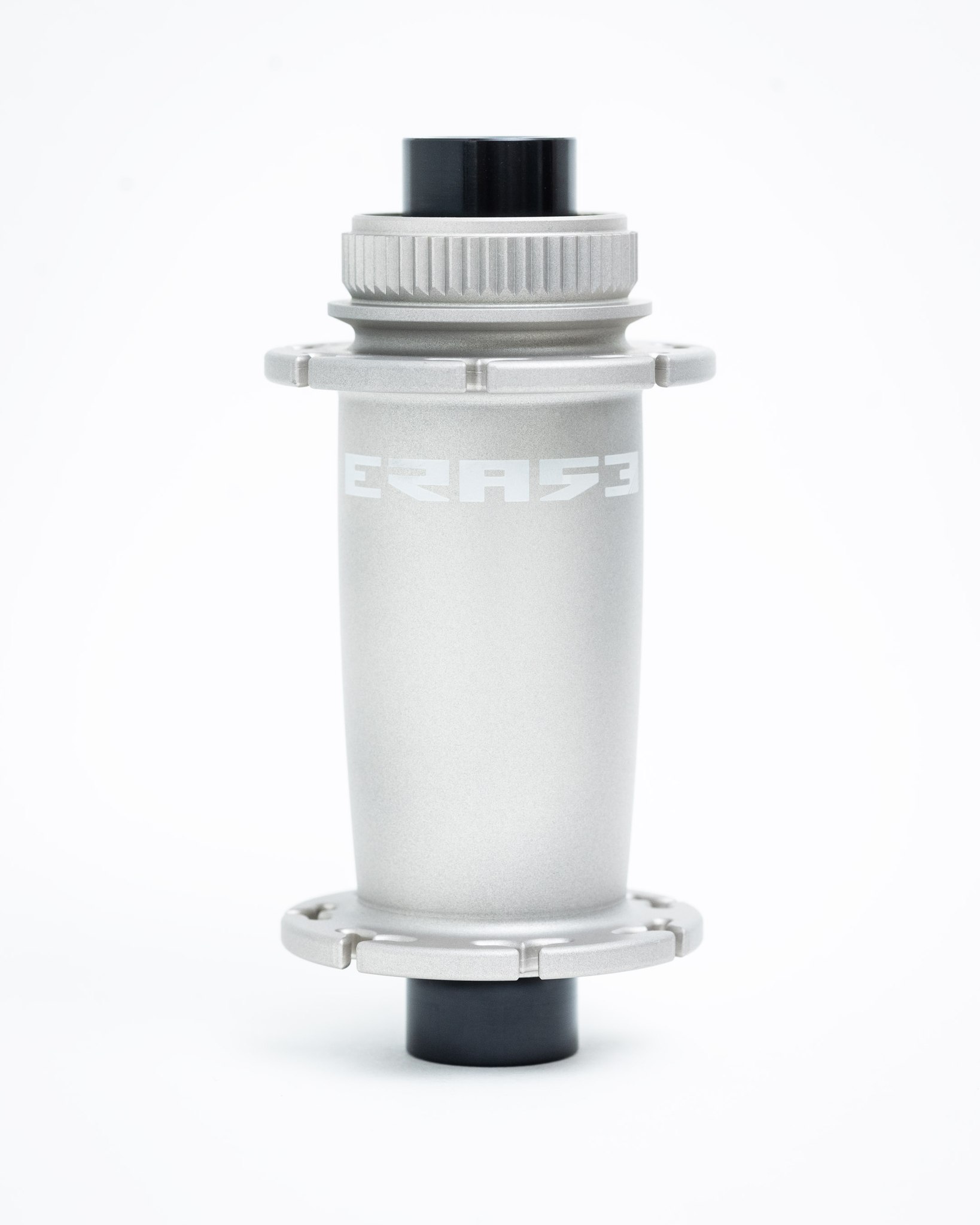

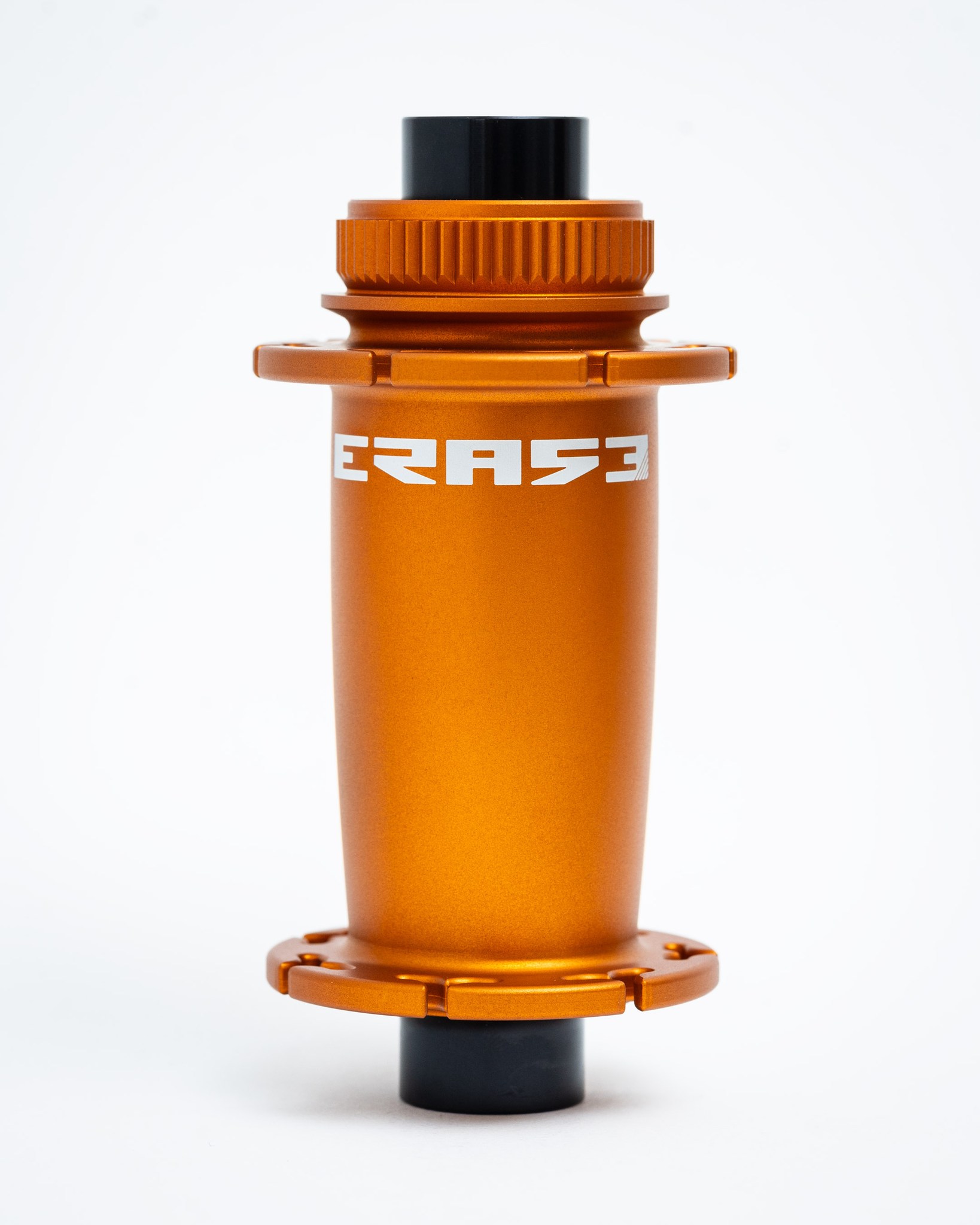

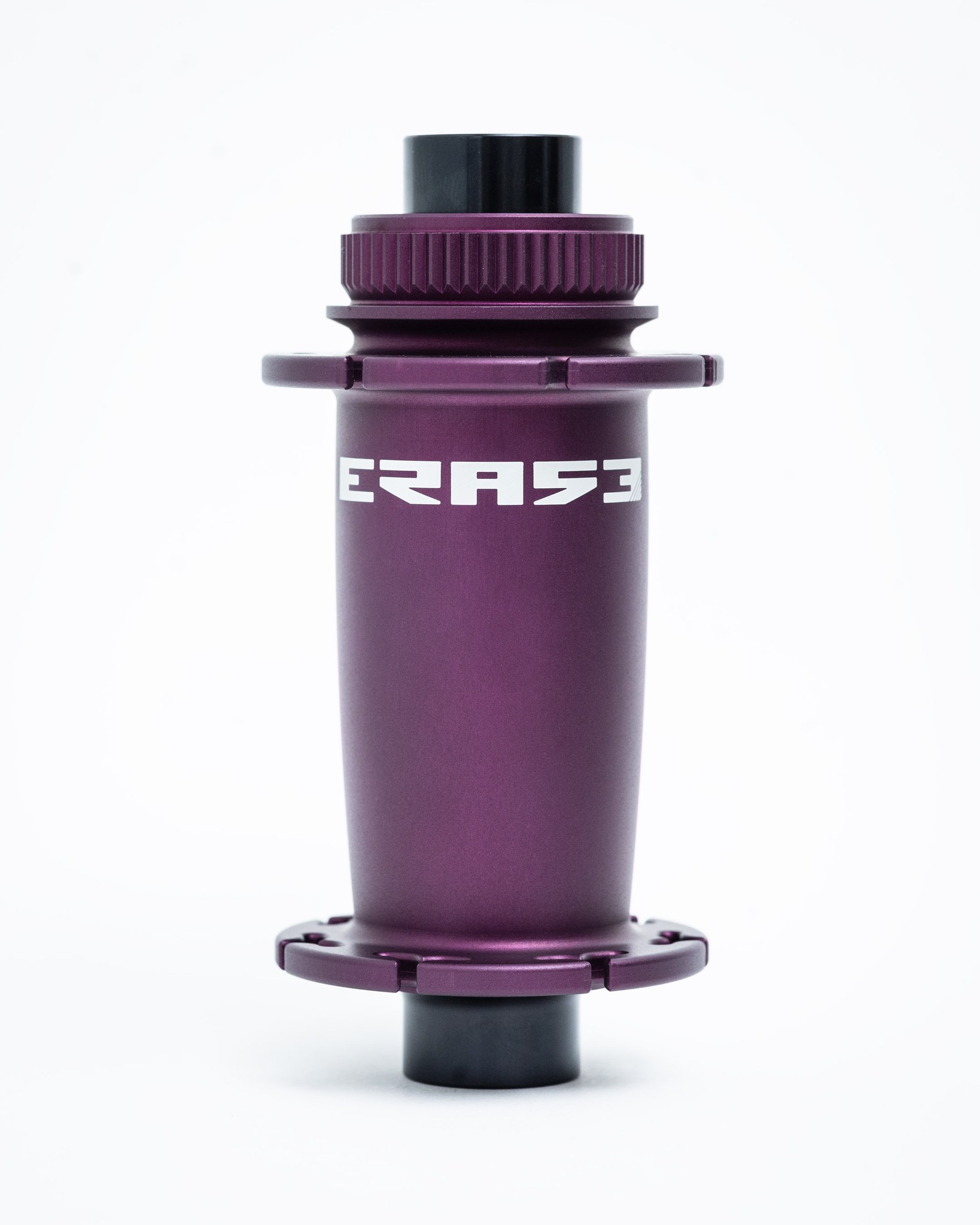

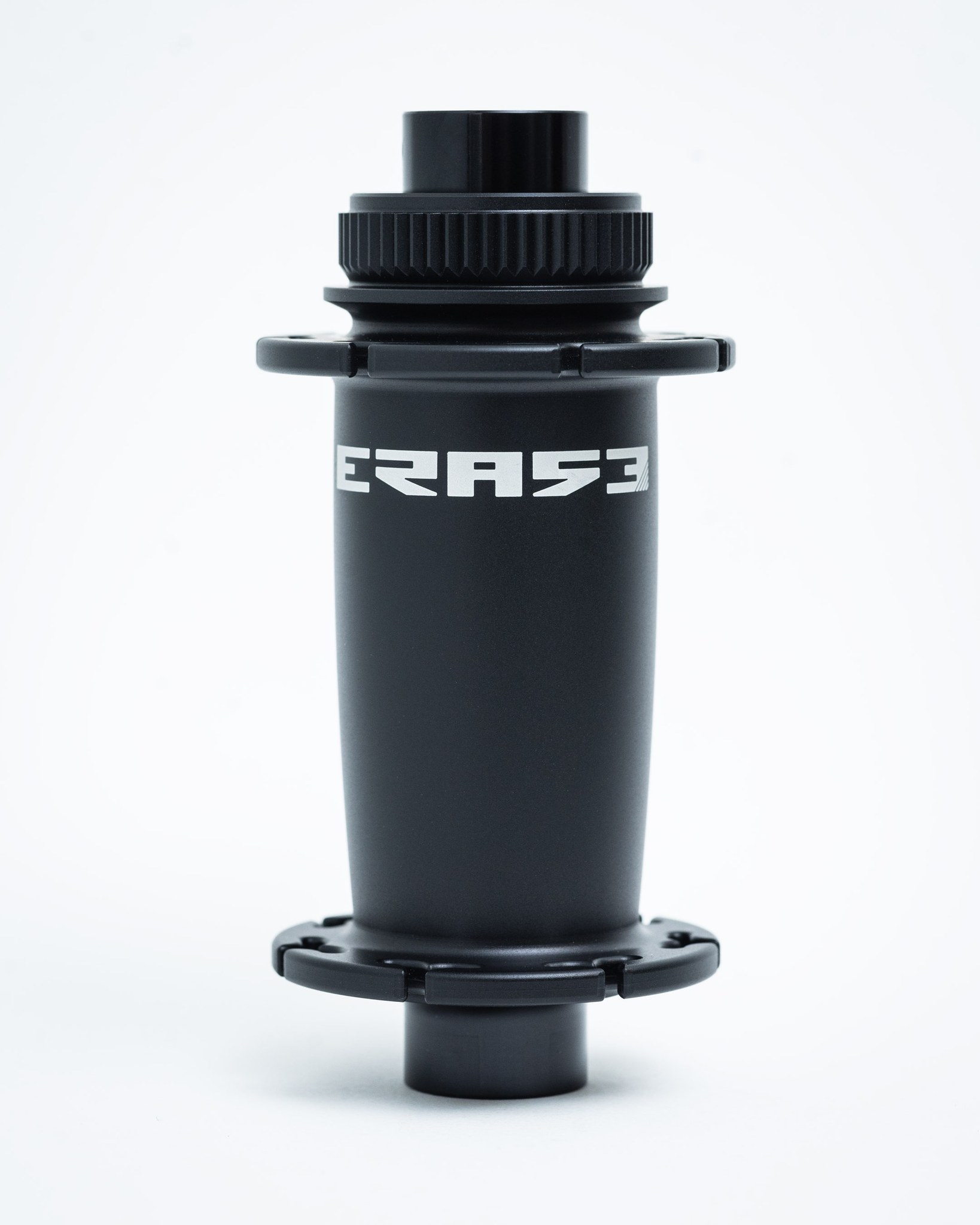

Matte Hook Flange Colours

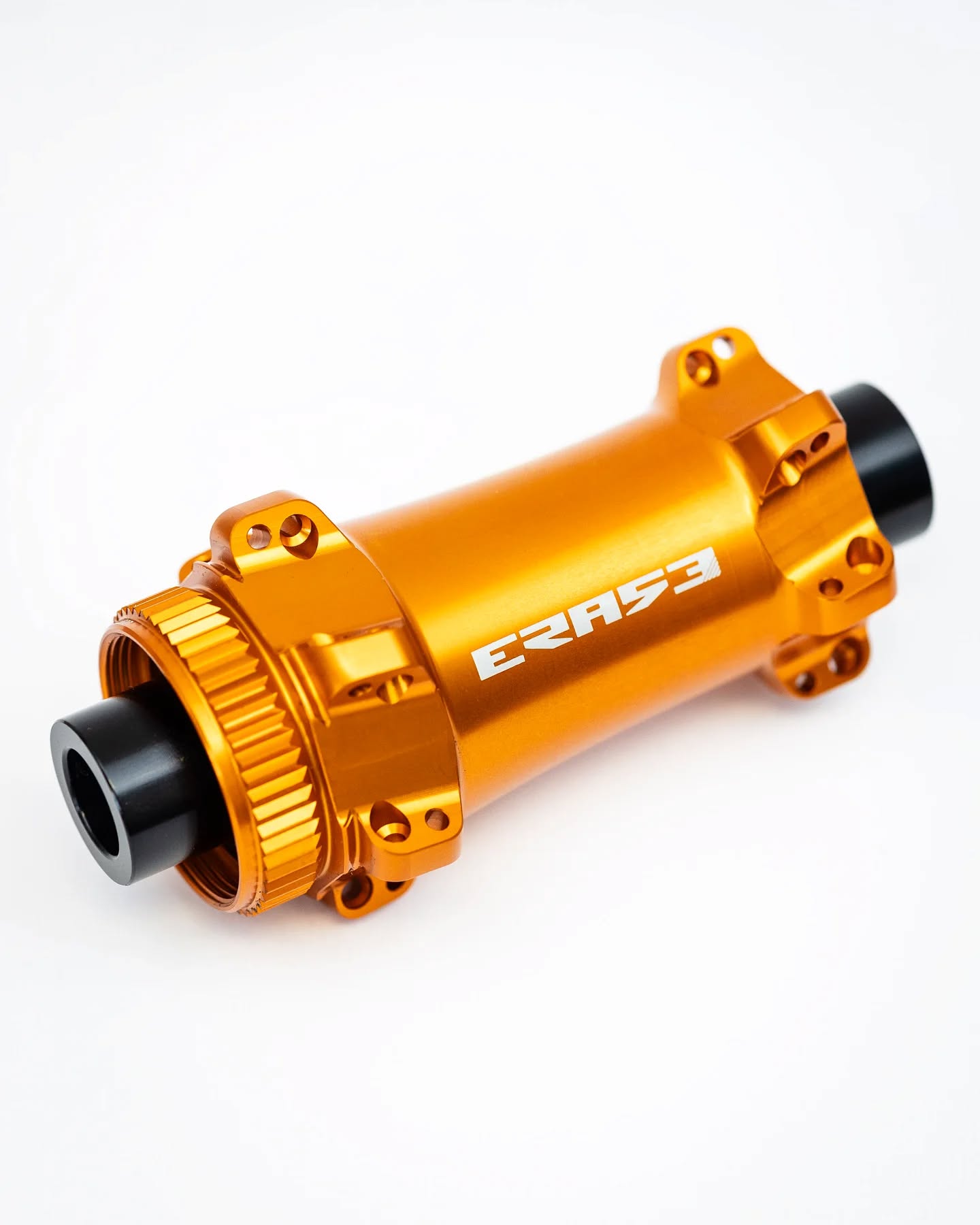

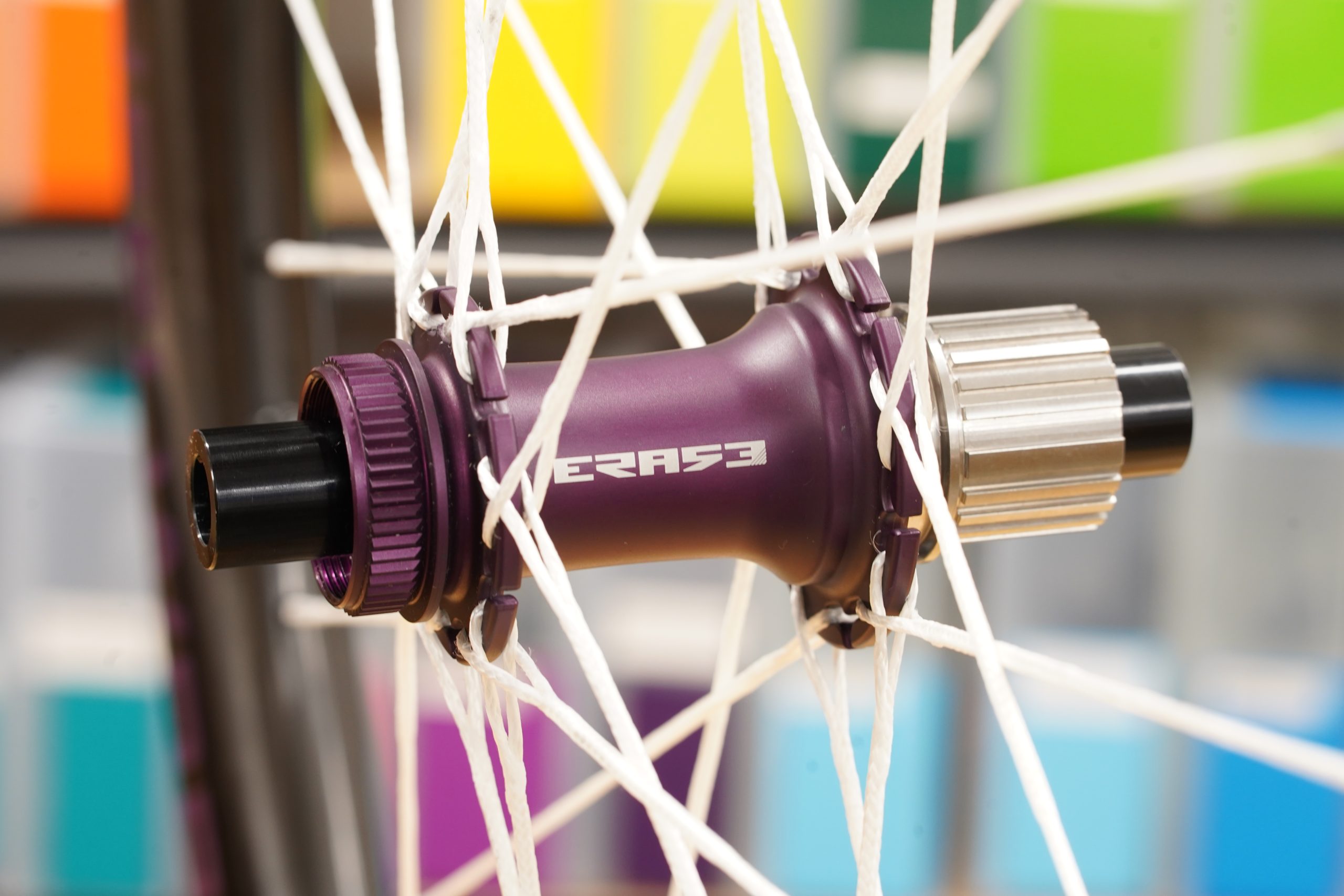

Shiny J-Bend and Straight-pull Colours

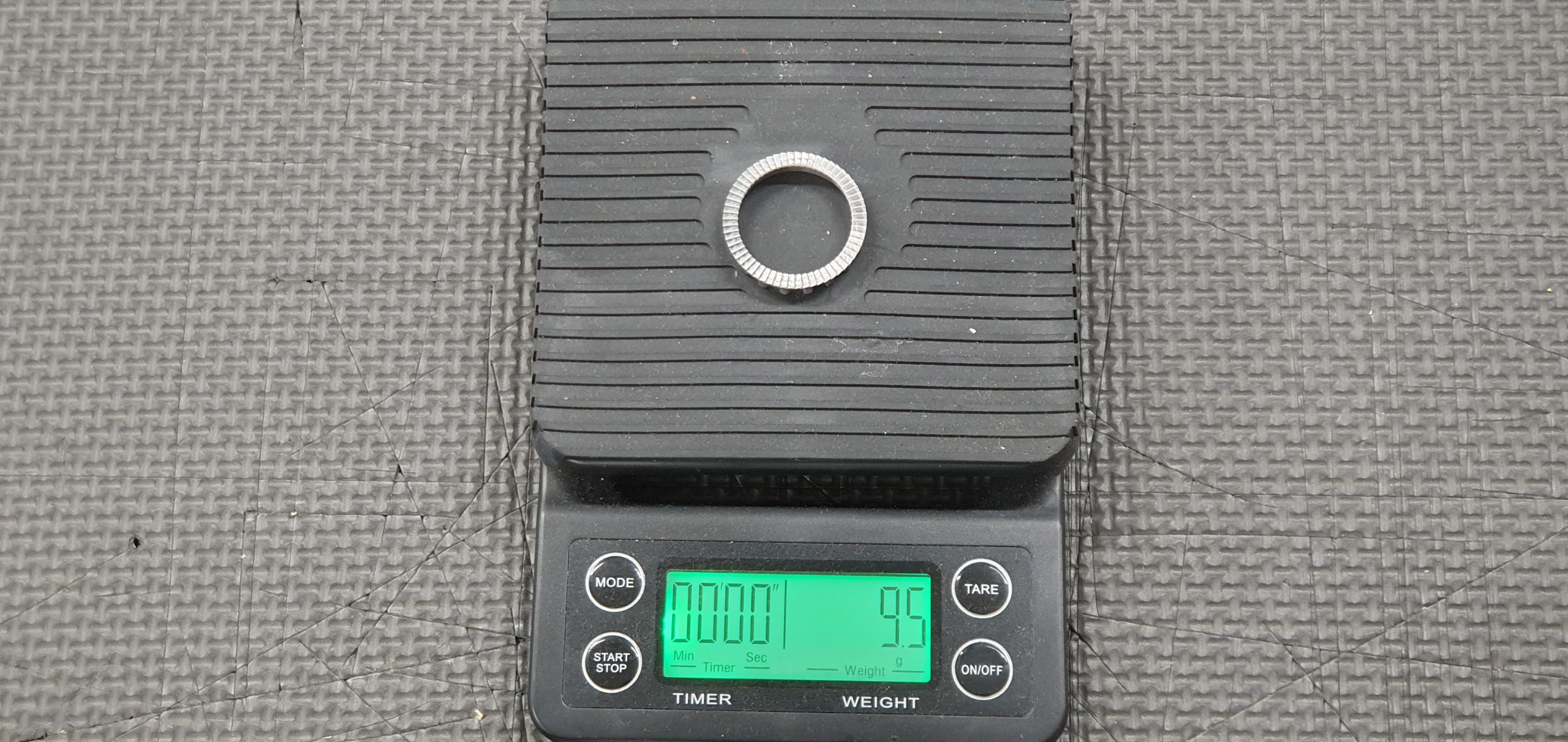

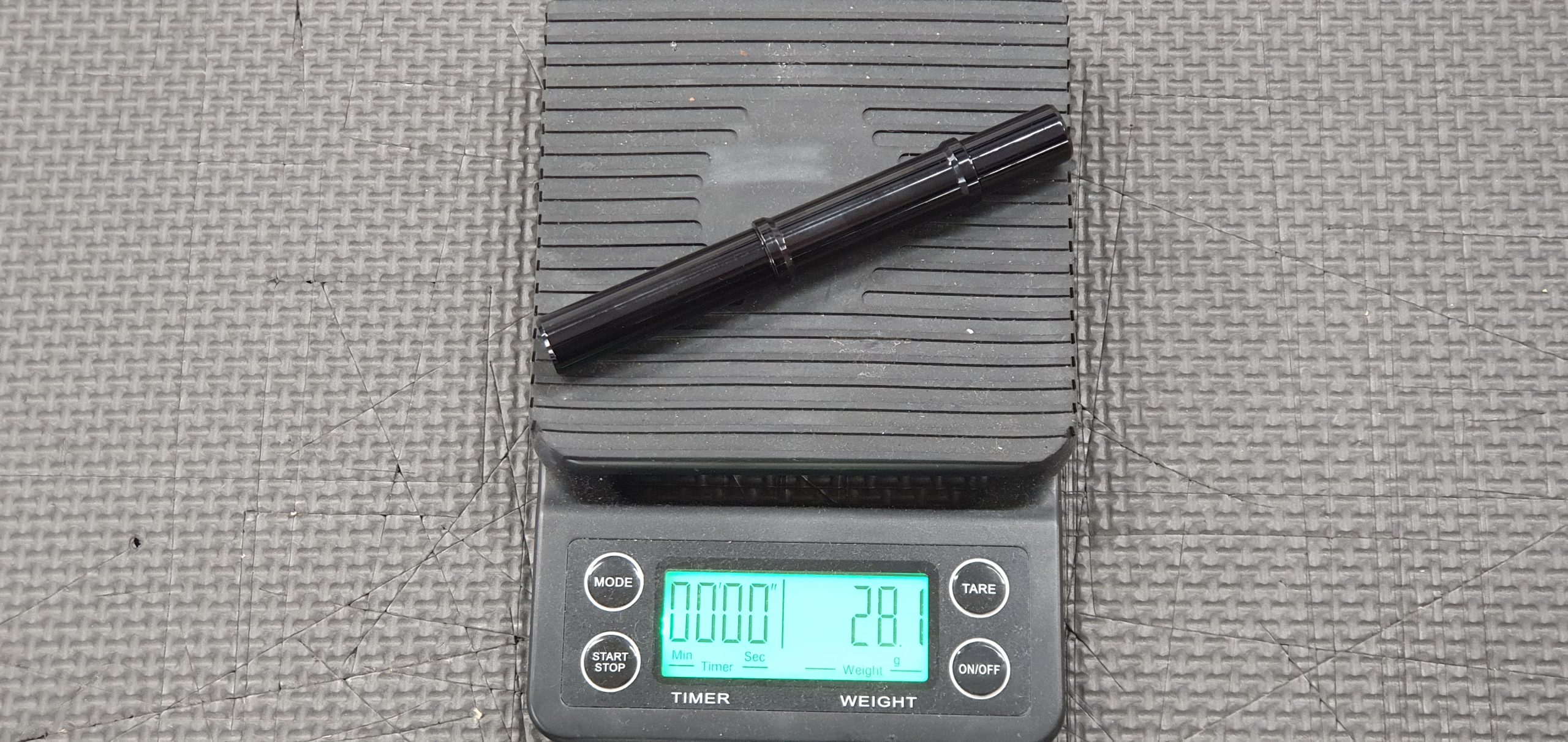

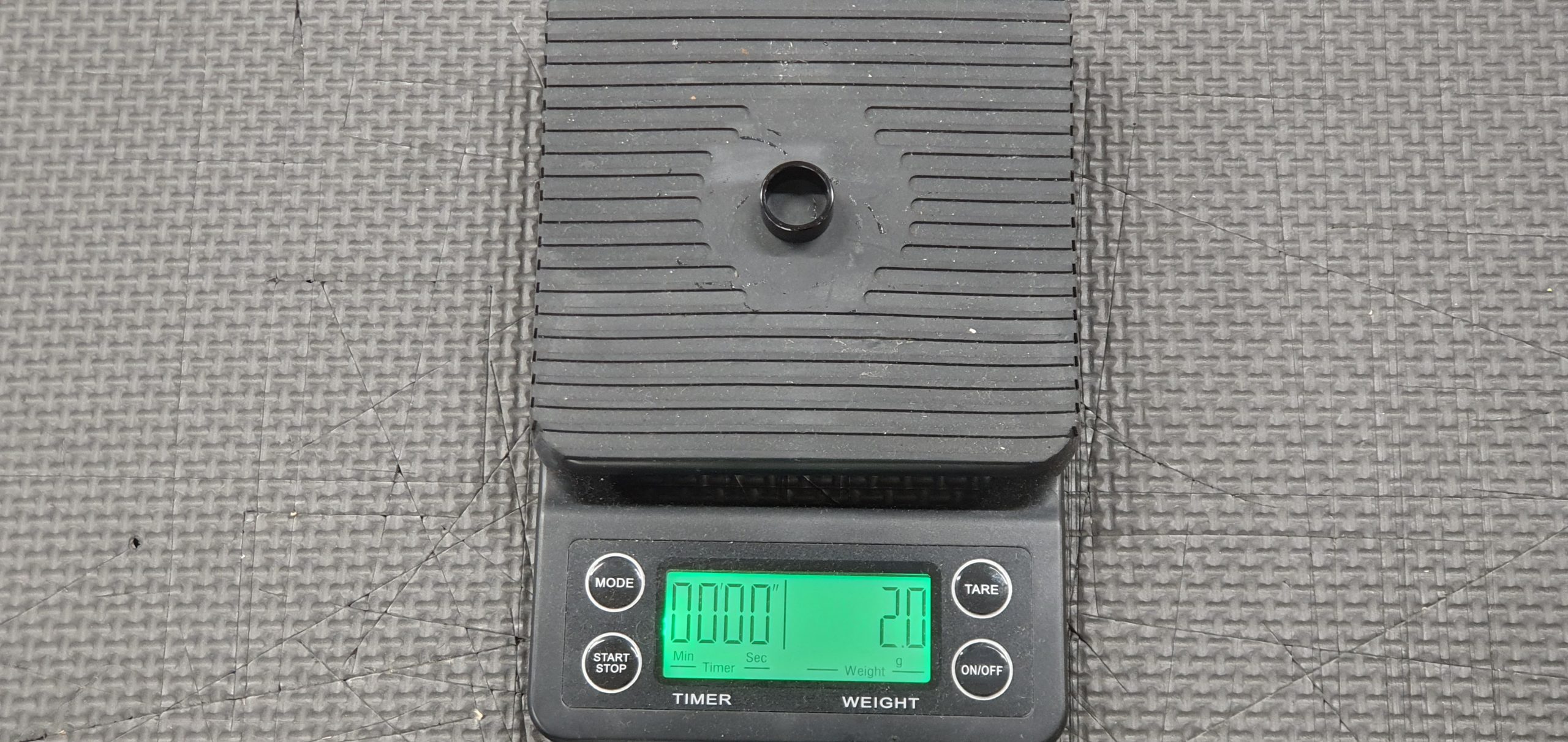

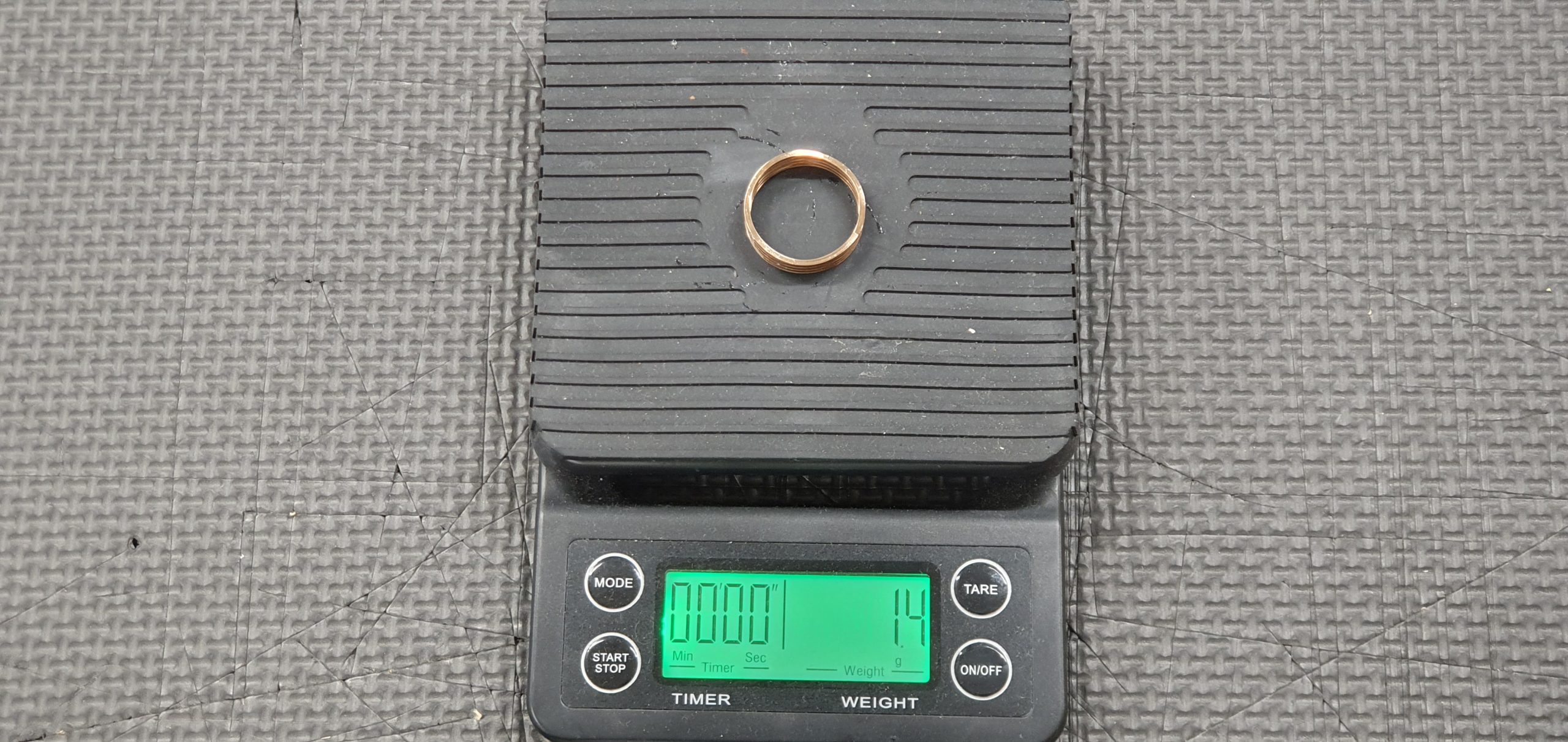

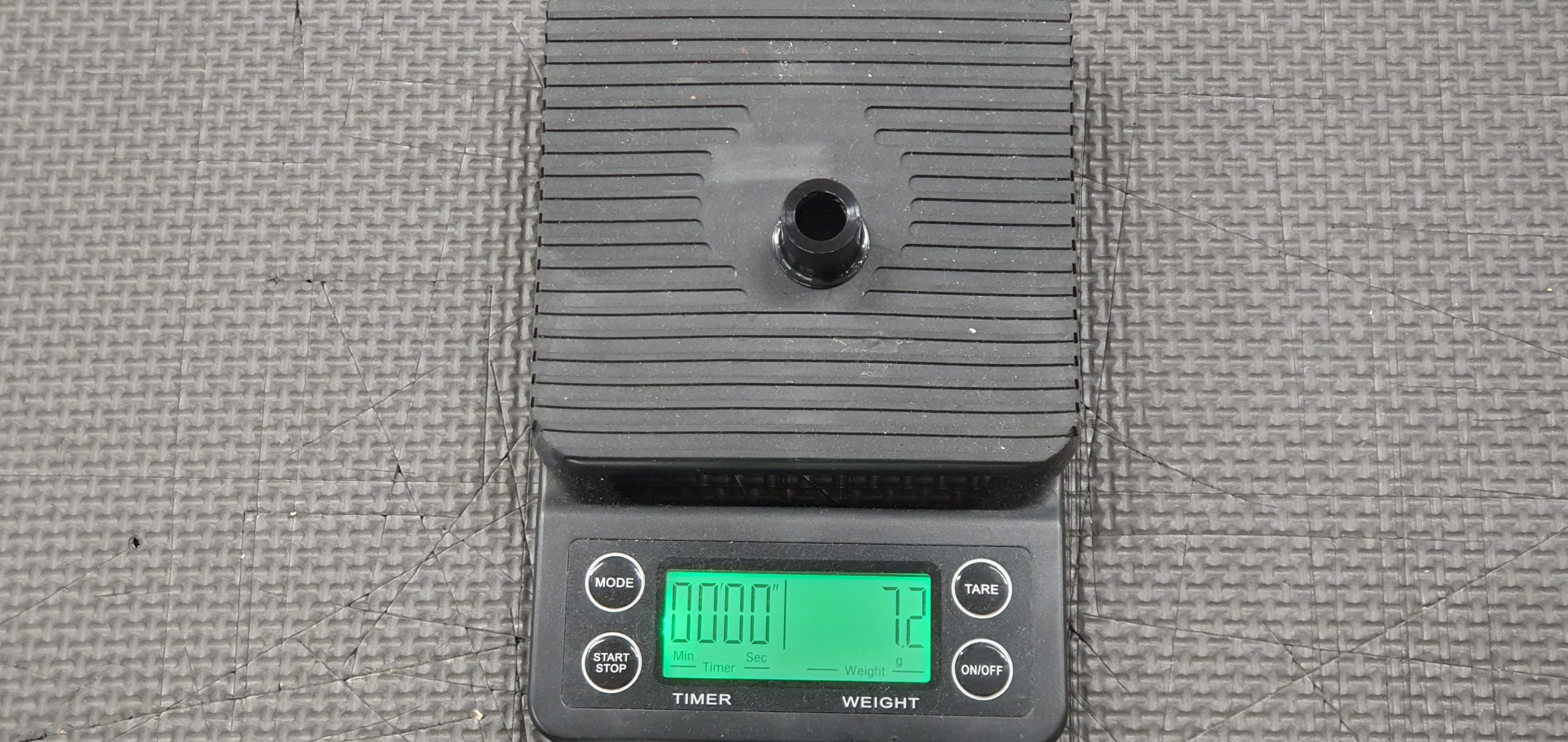

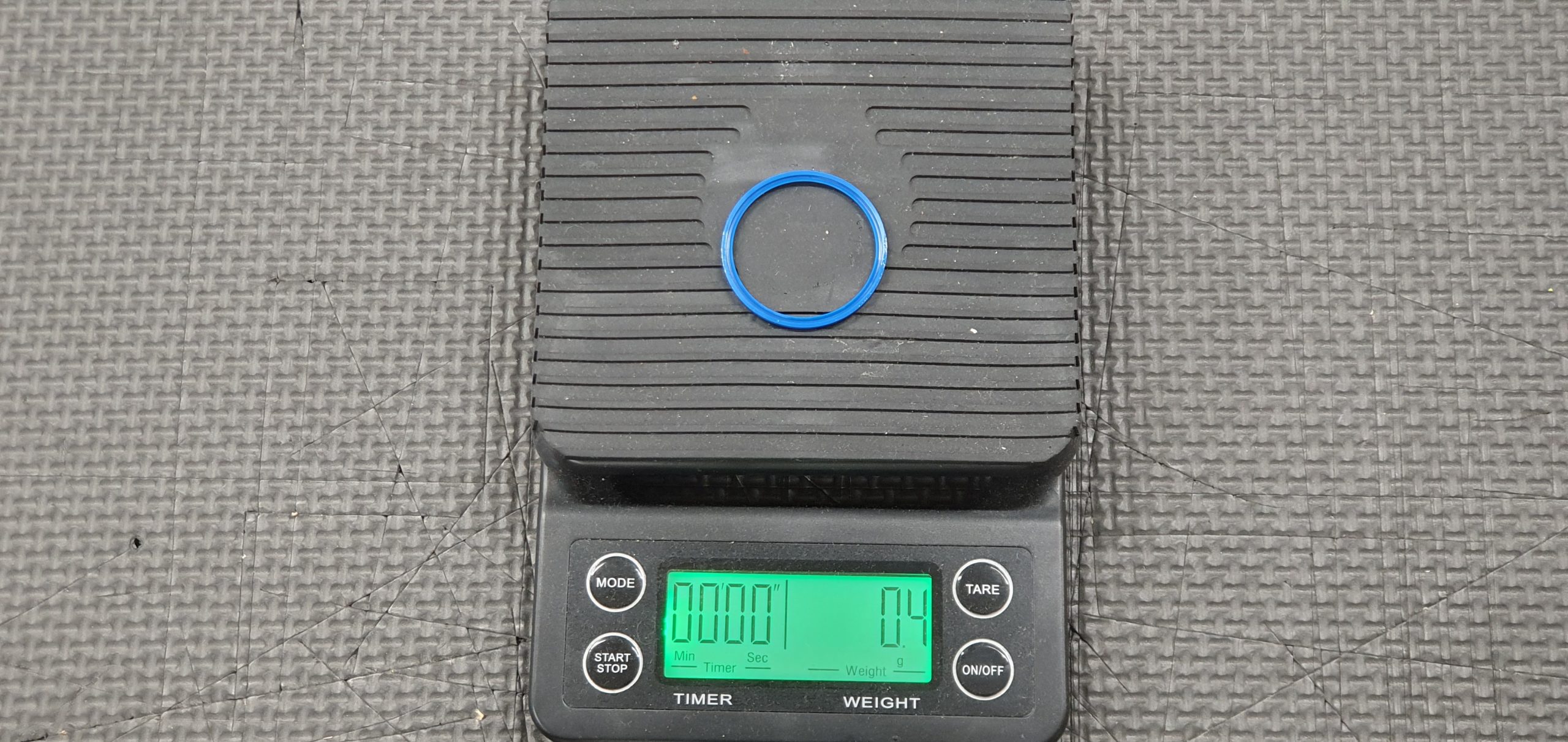

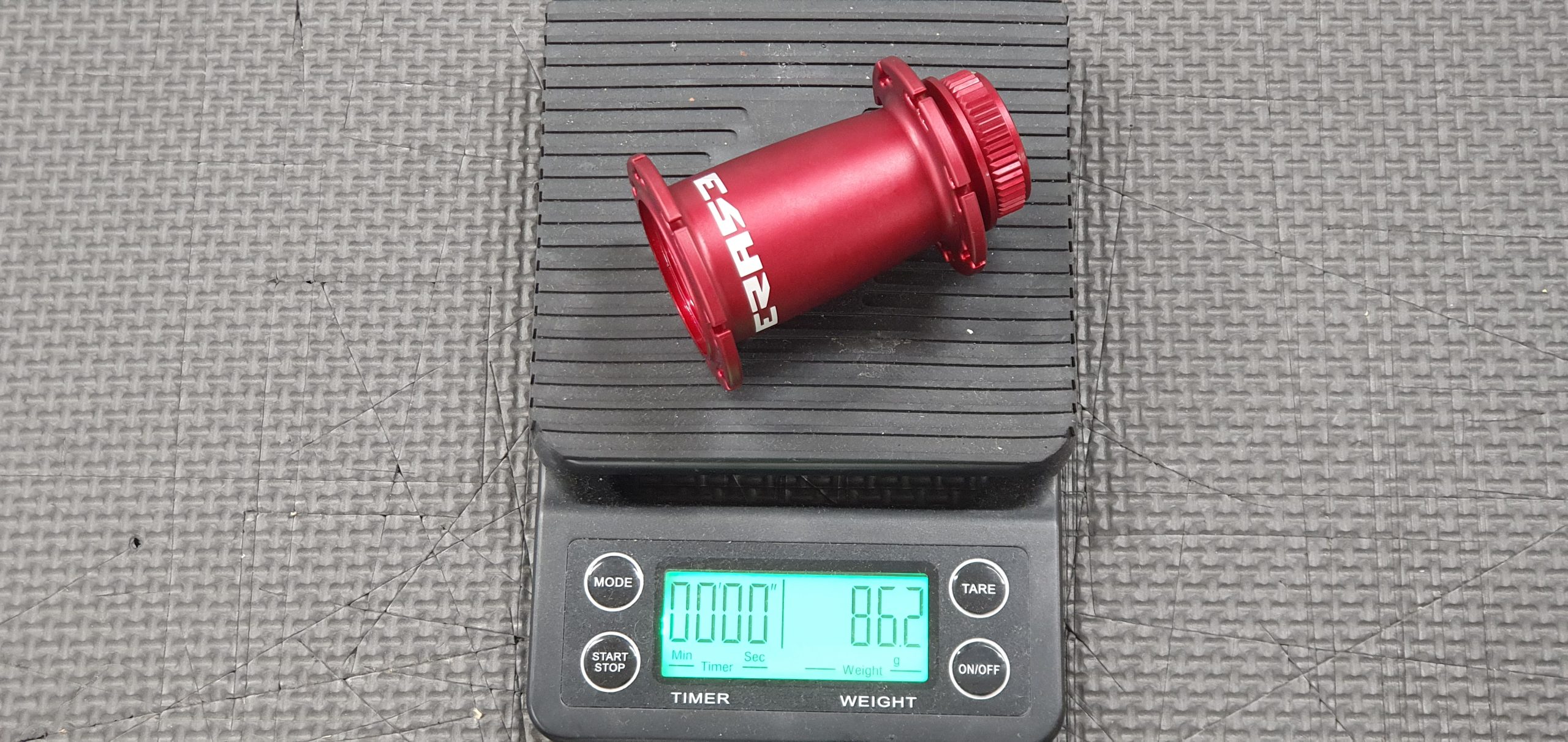

Weights and Bearings

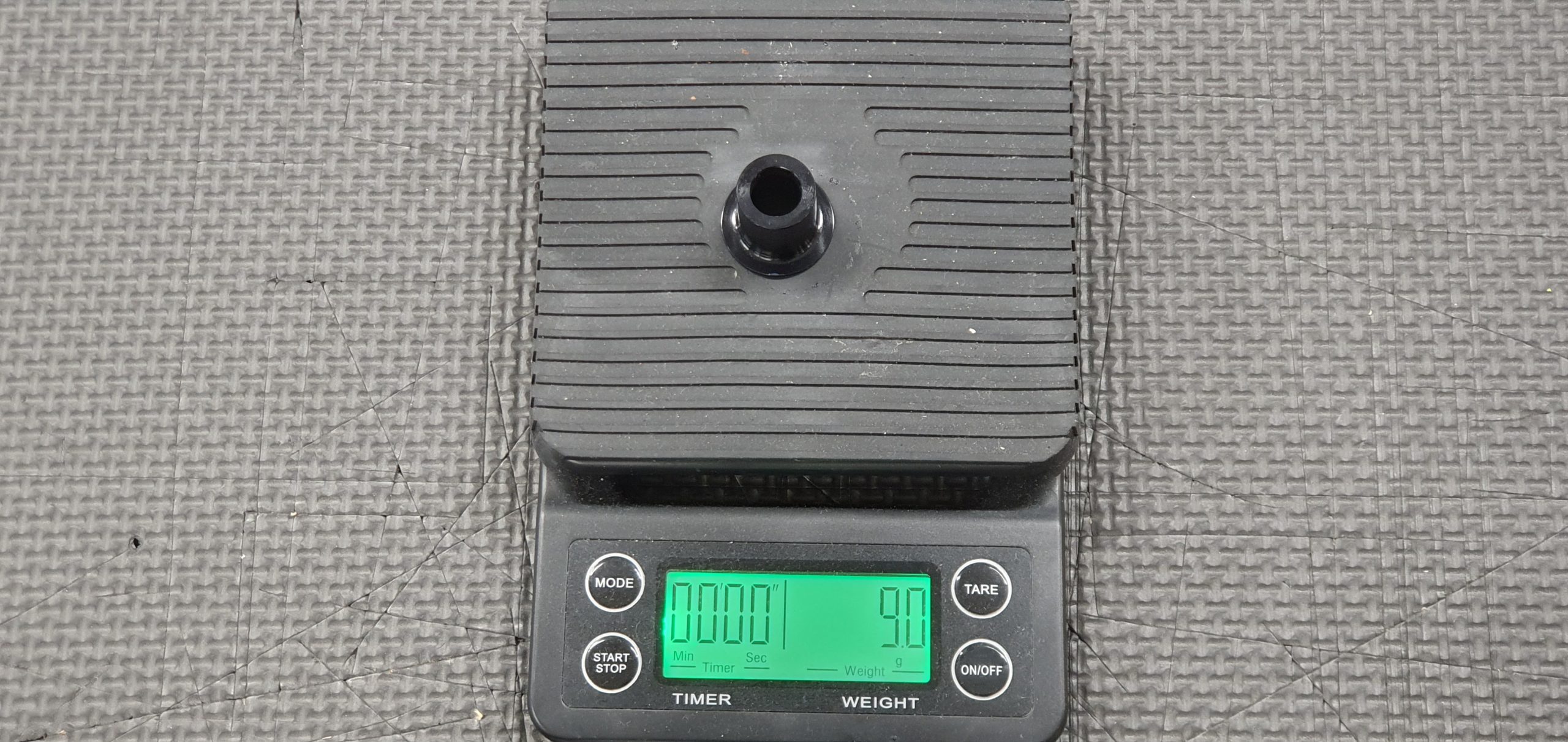

Road hubs: ~327g per pair / MTB hubs: 357g (centerlock), 387g (6-bolt)
These are impressively light figures considering the use of full-size cartridge bearings and a titanium freehub body.

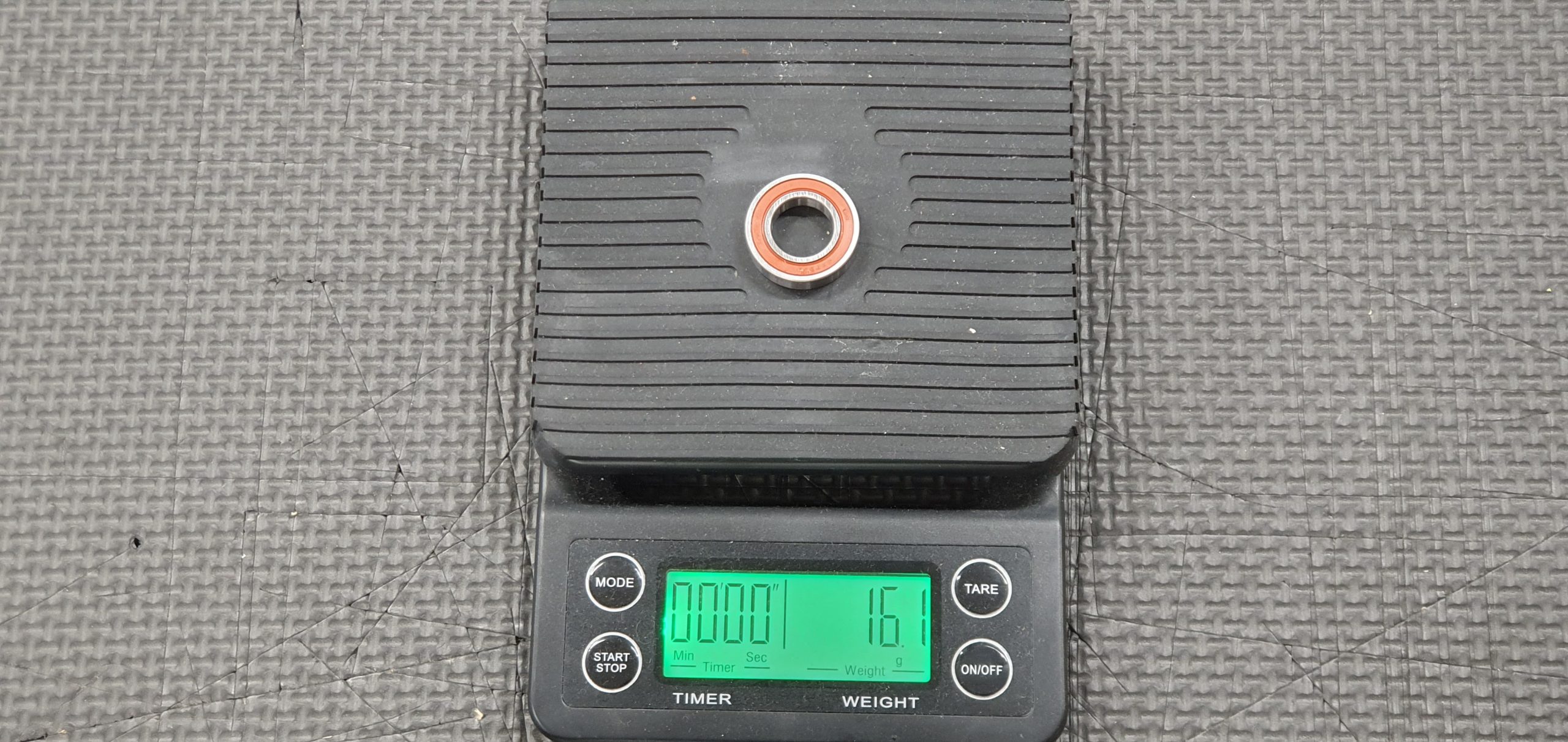

The hubs use TPI bearings, which are high-quality and easy to replace thanks to the use of standard sizes. The design uses the endcaps as dust shields, with no additional seals beyond the cartridge bearings.
The Freehub Body: Erase’s Standout Feature
The freehub body is a highlight. Instead of complex internal mechanisms, Erase uses a large stainless steel clutch plate and a single spring in a smart, minimalist ratchet design.

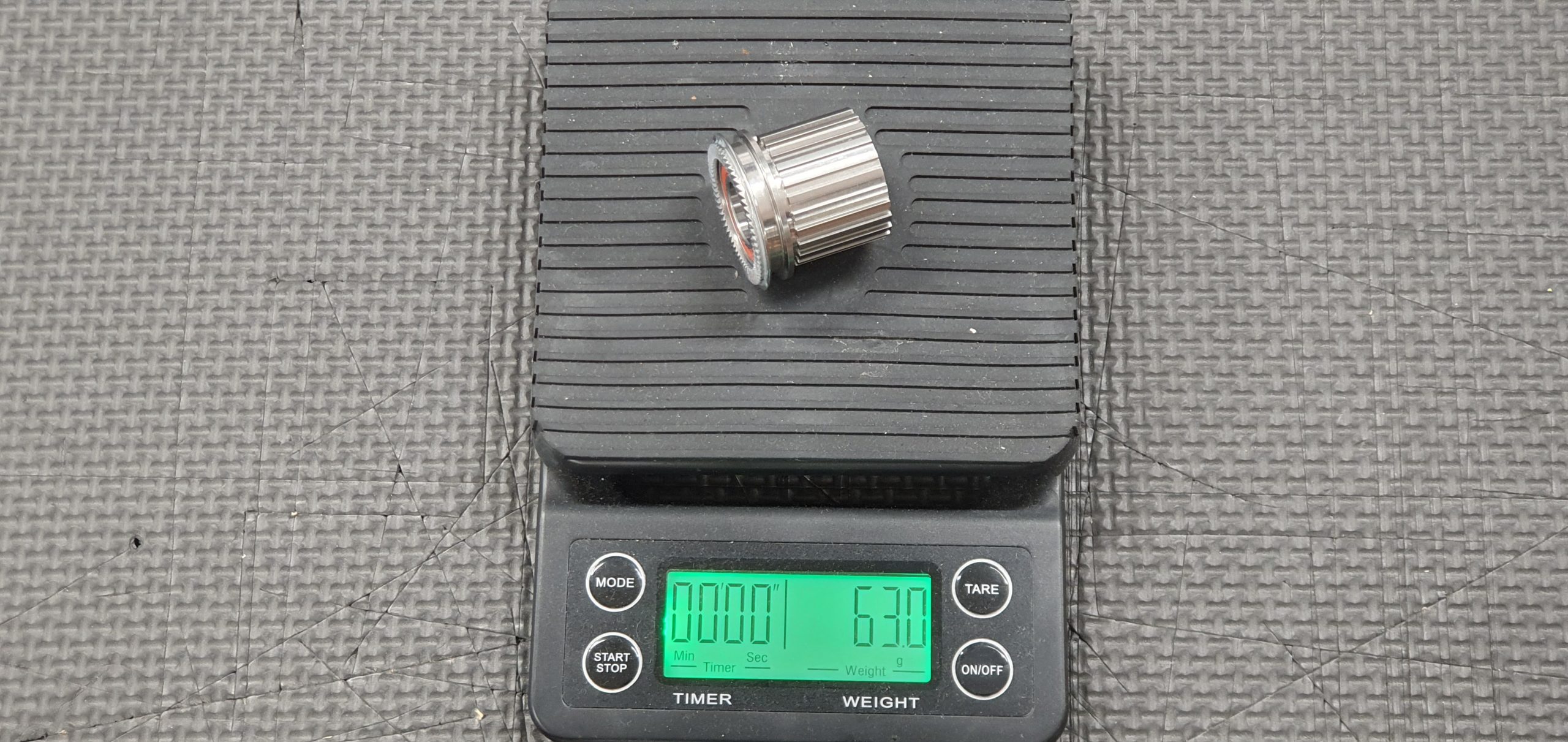

Machined from a single billet of titanium, the freehub and ratchet are robust, quiet, and resistant to cassette gouging

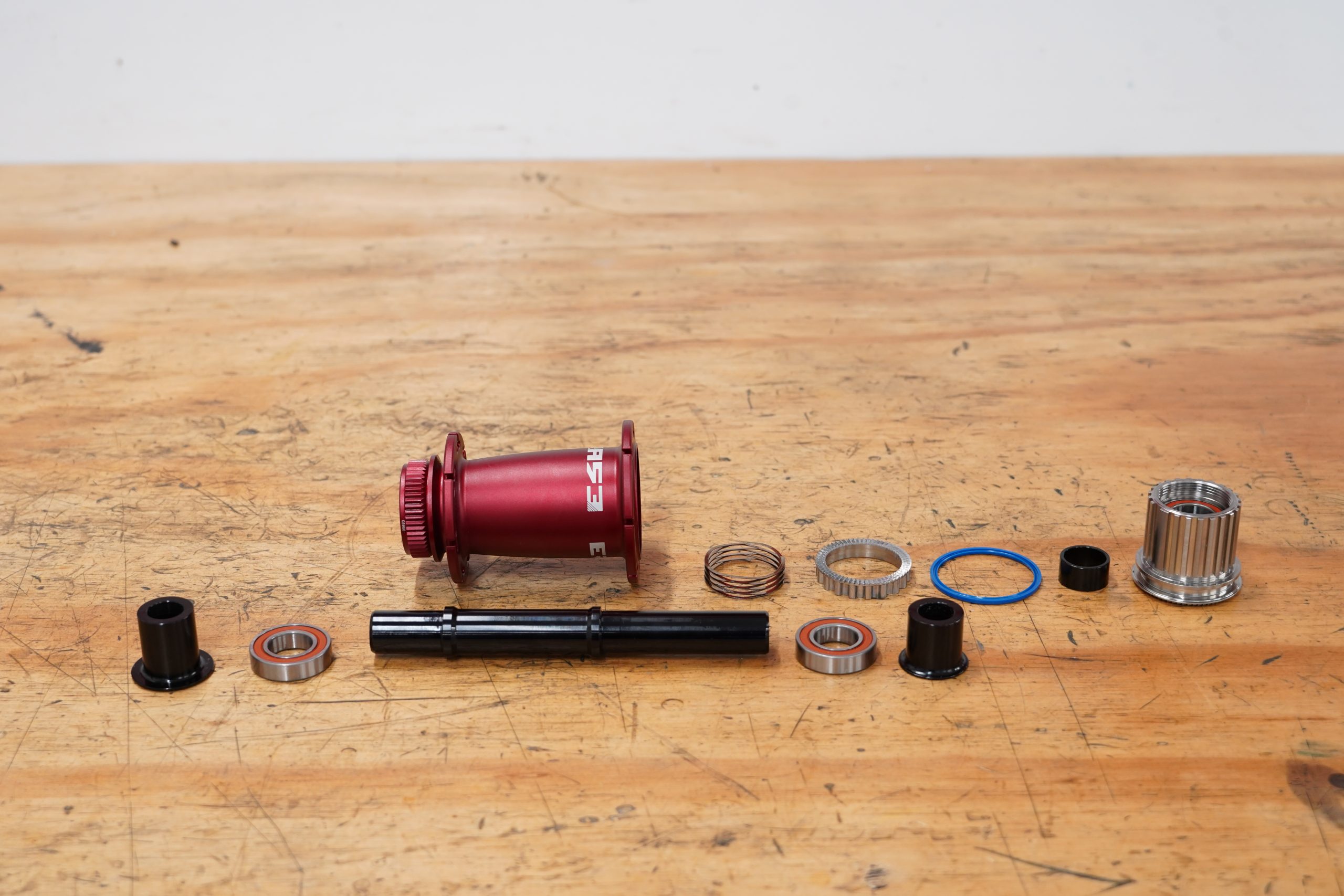

The system is simple to service, with no small parts or tricky assembly

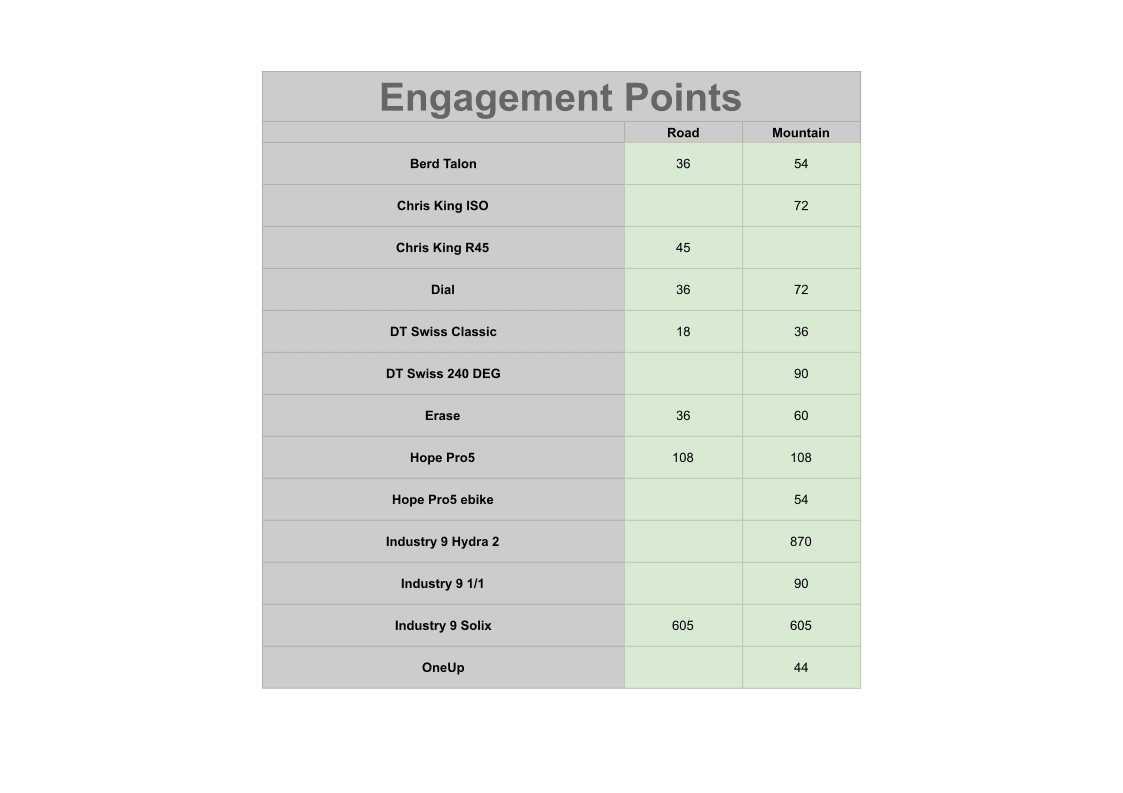

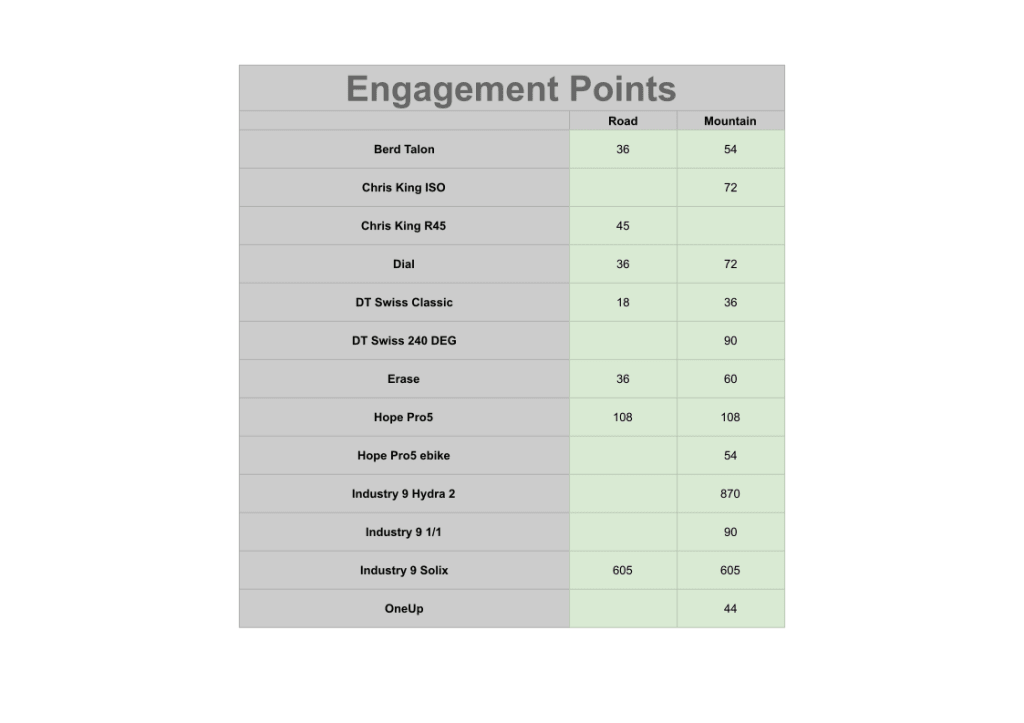

Engagement options: 36 points (road), 60 points (MTB)
Low drag, with a crisp, satisfying sound

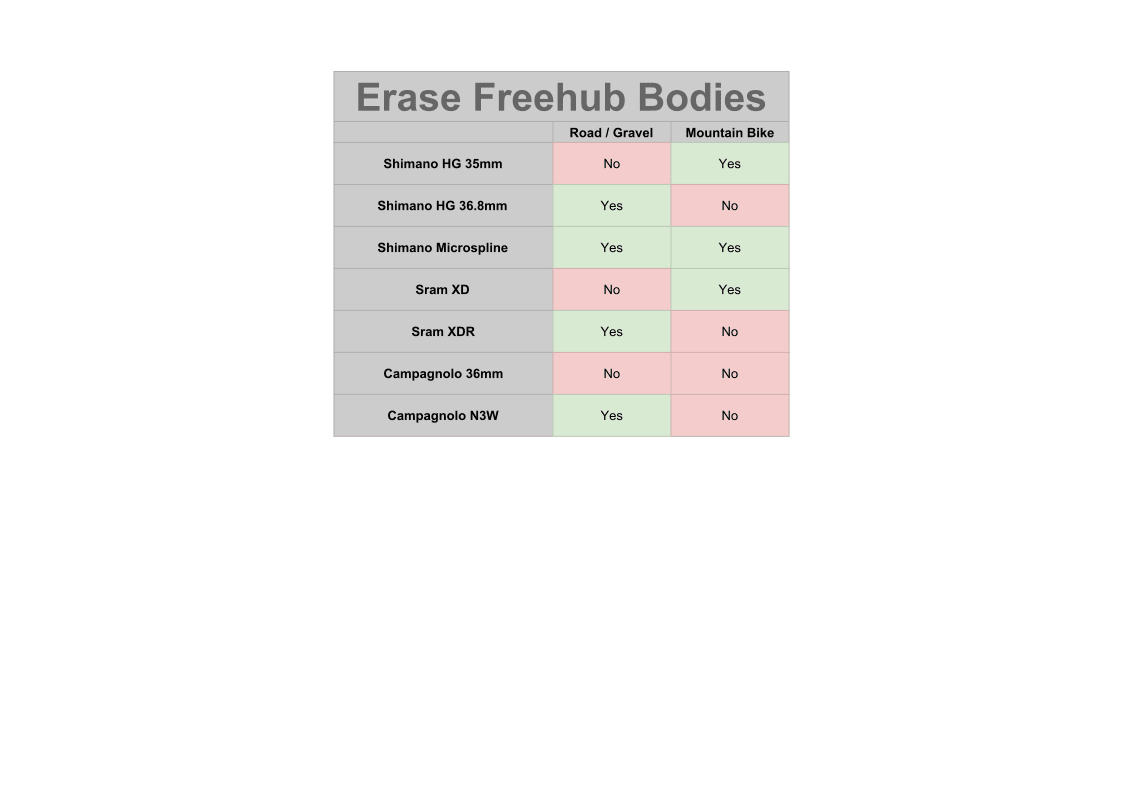

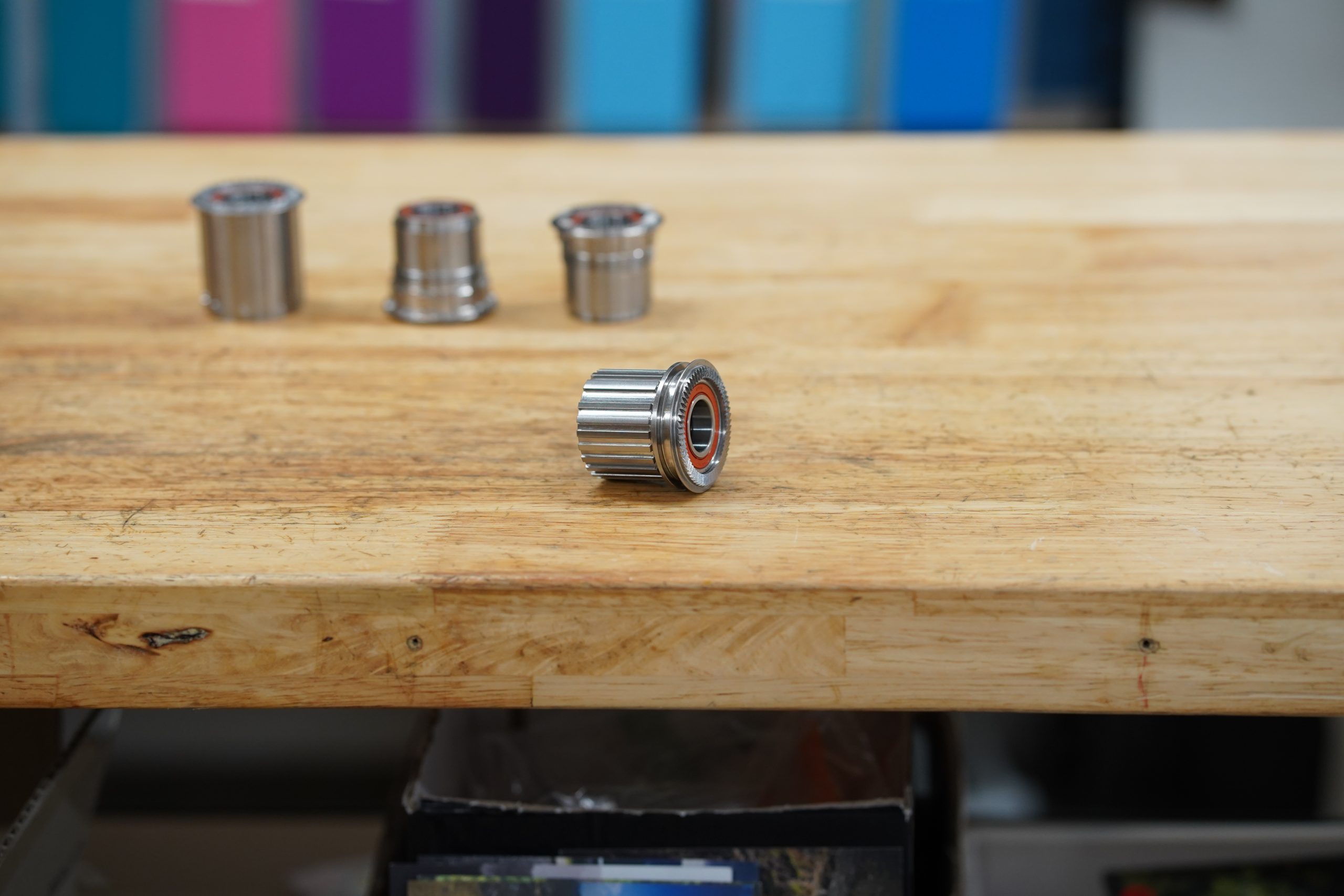

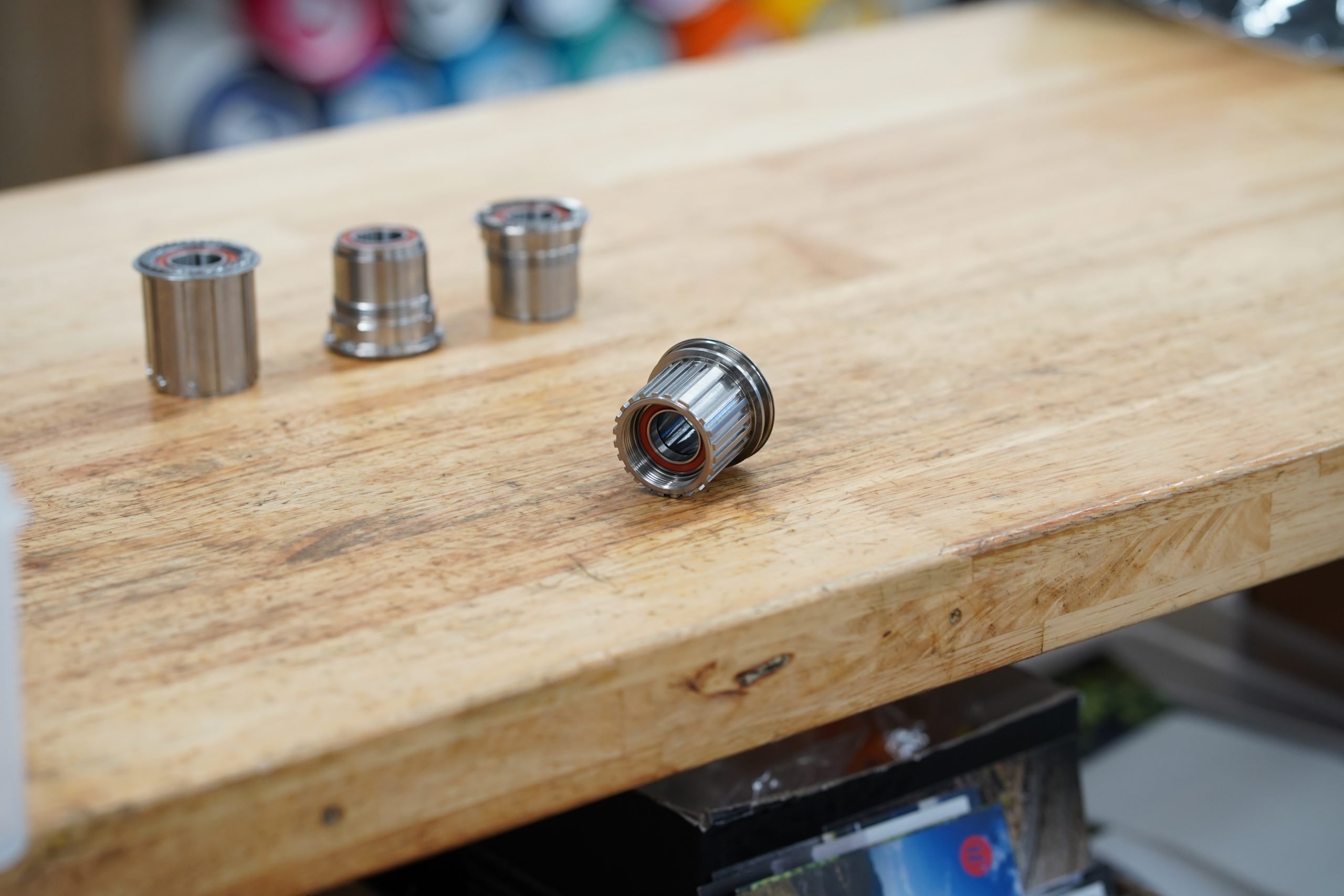

Freehubs are available for all major drivetrains: Shimano HG, Microspline, SRAM XD/XDR, and Campagnolo N3W. Road and MTB freehub bodies are not interchangeable due to flange geometry differences.
Serviceability and Support
Erase hubs are designed with longevity in mind. Most small parts are readily available and affordable, and while the technical documents could be better labelled, the straightforward construction means servicing is intuitive.

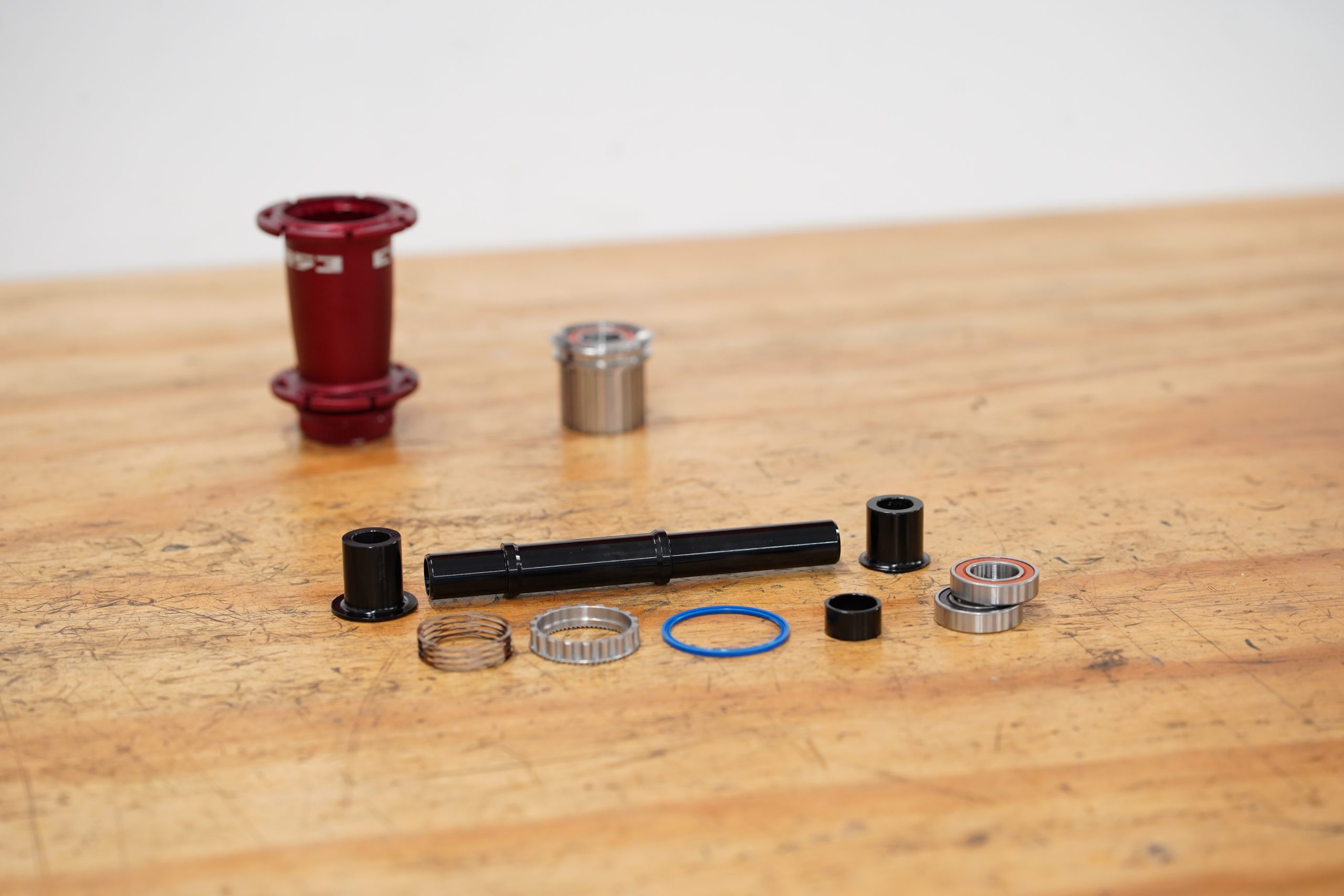

No special tools are needed—everything pulls apart by hand, making routine maintenance fast and frustration-free.
Final Thoughts
Erase hubs may not be a household name yet, but their clever engineering, top-tier materials, and thoughtful design make them a standout option. They’re especially well-suited to Berd spoke builds and riders looking for a lightweight hubset without sacrificing durability.
For more information or help spec’ing a custom wheelset, get in touch with us at Wheelworks and we'll talk you through whether Erase hubs are right for your build.
