A Close Look at the DT Swiss Aluminium Rim Range

DT Swiss makes a whole range of 30mm-internal width aluminium rims.

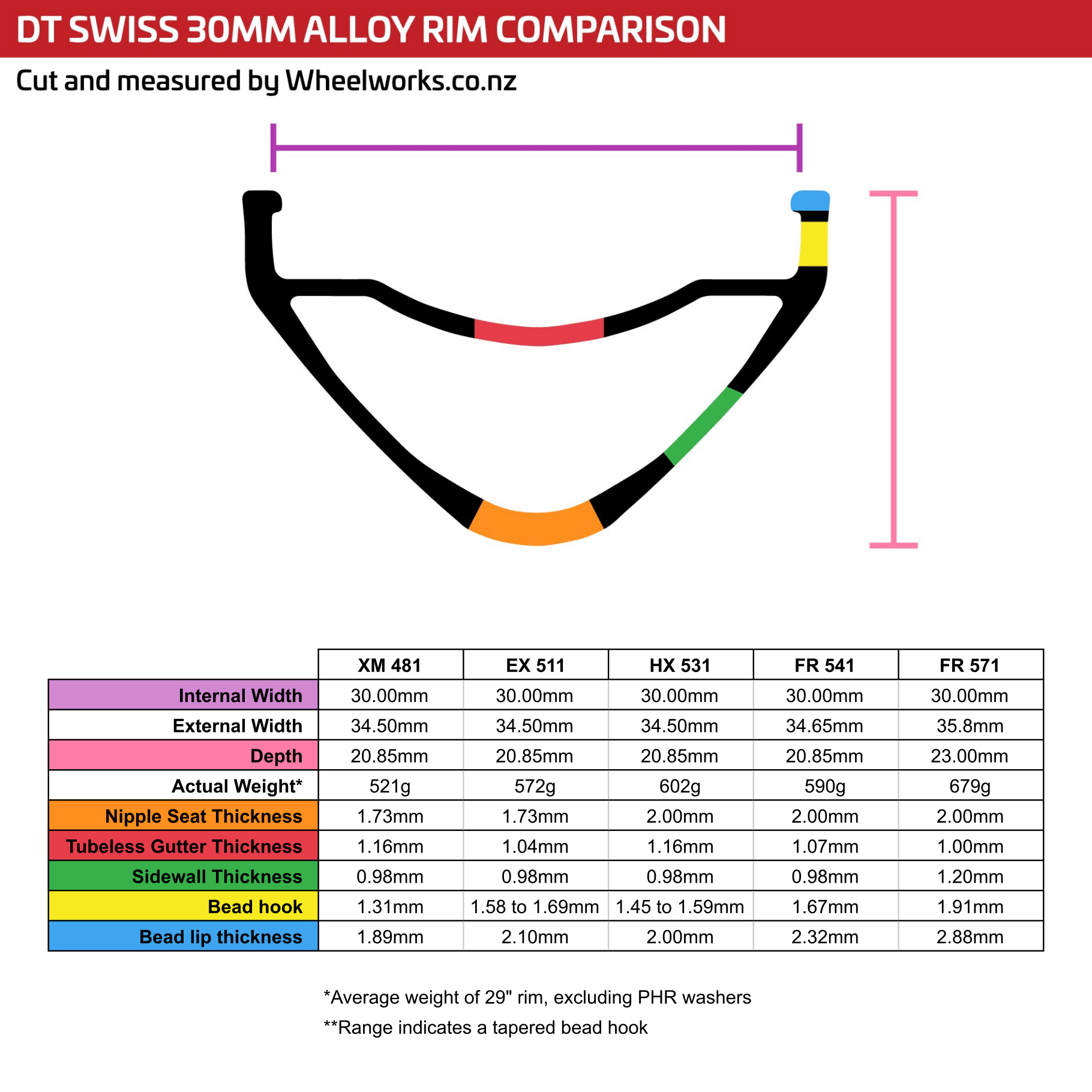

Are there more differences that we’re unable to see?  Well there’s only one way to find out - cut them up and measure them!

It’s interesting, but unsurprising, to note that the internal quality of the rims, which you can’t see until you cut them up, is as good as the outside quality.  This is a true sign of something being well made by people who take pride in what they’re producing.

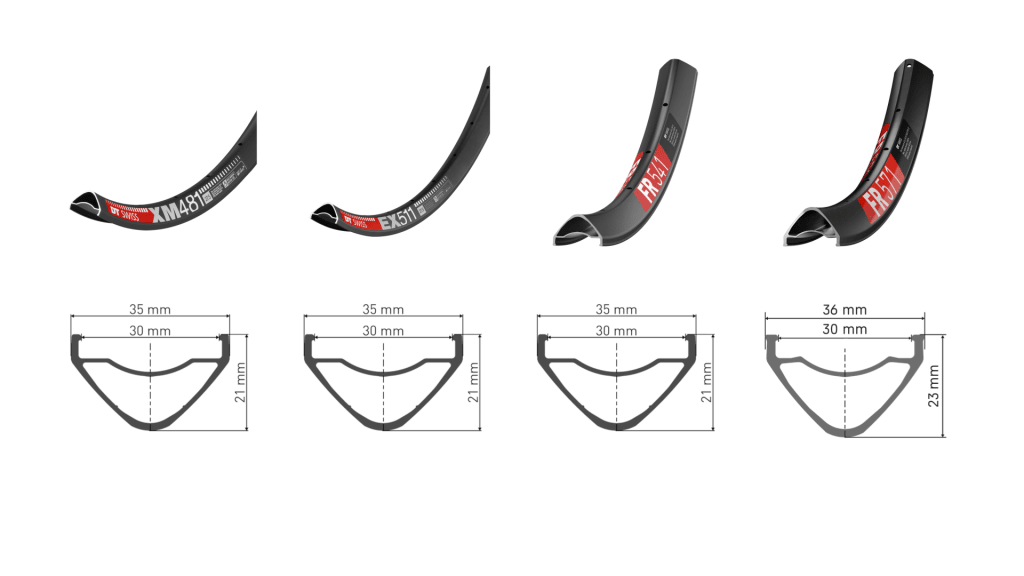

In case you need a refresher, the modern DT Swiss rim lineup for 30mm internal 29" rims looks like this:

The XM 481 is the lightest at around 521 grams for a 29” rim and works really well on Down-Country bikes.

The EX 511 works well on Trail and Enduro bikes.  We often pair the lighter XM-481 on the front and the more durable EX-511 on the rear.

The HX 531 is the “hybrid” e-bike version.  It’s another 30g heavier than the EX 511.

The FR 541 rims weigh 590 grams and works well on aggressive Enduro and ebikes.  We often match the lighter EX-511 on the front wheel and heavier FR-541 on the rear.

The FR 571 rims are the heaviest-duty of the DT Swiss range and are designed for heavy freeride and aggressive ebike use.  We often match the lighter EX-511 or FR-541 on the front wheel with a heavier FR-571 on the rear.
