What is the Full Custom Alloy?

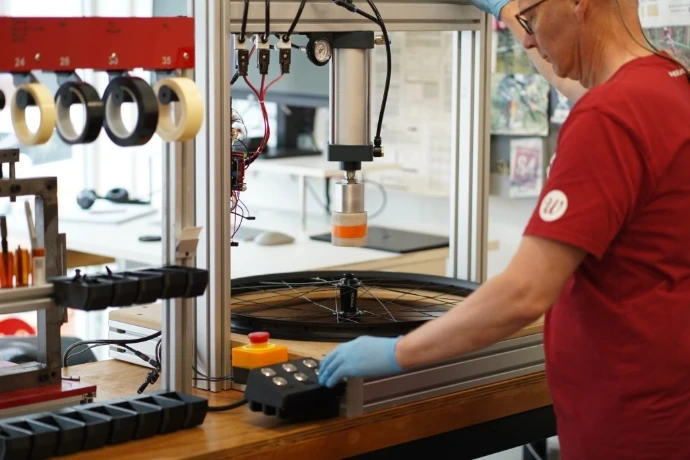

A wheel built entirely around you. Choose your components, personalise the look, and we'll precision build them in our Wellington workshop.
We've spent a lot of time riding, testing and researching to put together this component range. Everything on the list has been chosen because it's a proven top-tier performer for mountain bikes..
There are a lot of options here, and that's the point. Luckily the only thing we do better than build custom wheels is help you figure out which components suit your bike and riding best.
Not sure about something? Call or email before you order - we're happy to talk through the options.
We'll call after your purchase to run through your spec and ensure nothing gets built until everything's right.
Rim options
These are the most popular rims we build with - each one tried, tested and proven in our workshop. They cover everything from fast gravel racing to heavy touring, and we know they work because we've built hundreds of wheels around them. Not quite what you're looking for or after something different? Get in touch - we can source other rims to suit your build.
| Rim | Typical Use | Internal Width | Weight 29" |
| DT Swiss EX-471 | XC, Trail | 25mm | 532 + 9 = 541g |
| DT Swiss EX-481 | XC, Trail | 30mm | 521 + 9 = 530g |
| DT Swiss EX-511 | Trail, Enduro | 30mm | 575 + 9 = 584g |
| DT Swiss FR-541 | Enduro, ebike | 30mm | 590 + 9 = 599g |
| DT Swiss FR-571 | Endro, DH, ebike | 30mm | 687 + 9 = 696g |
| Wheelworks W:one | Trail, Enduro, ebike | 30mm | 605g |
All rims are weighed by us. DT Swiss rims require 9 grams of PHR washers.
Hub options
All the hubs we sell can be ridden hard and maintained easily.
We'll ensure they fit your current bike but they're also versatile and adaptable enough to move to your next one. Want to go deeper? Check out the hub deep-dives on our hub portal for the full rundown on each option or get in touch with your hub related questions.
Dynamo hub options
We're big fans of the SON 28 and 29s hubs. The SON 28 typically adds $350 on the Dial, DT Swiss 350, or Hope Pro5 builds, and a little less if you choose more expensive rear hub options.
The SON 29s can't be used on every model rim because of its limited spoke count options and 2:1 lacing pattern but typically adds $500.
Drop us a note and we can see which model hub is best suited to your wheels and give you a firm price.
Spoke options
We offer a range of spokes from Alpina and Berd.
The spoke choice comes down to how the wheel feels: weight, stiffness, liveliness and comfort. Want the full picture? Check out the spoke deep-dives on our spoke portal for a closer look at each option, or get in touch and we'll help you choose.
What's in the box
- Ready to ride: Your new Wheelworks arrive pre-taped and fitted with high-flow tubeless valves - straight out of the box.
- Free tracked delivery: Courier delivery is free of charge throughout New Zealand and Australia.
- Packaging we're proud of: Your wheels ship in a custom-made cardboard box, produced in-house on our CNC. Made from 68–71% recycled material, sourced from sustainably managed forests in Kawerau and Tokoroa. No single-use plastic, no styrofoam. Designed for multiple uses and fully recyclable.
Warranty
We've got a lifetime warranty on all the spokes and build-quality. Individual components will be covered by their respective manufacturers warranties. For more information please visit our warranty page.
Image Gallery

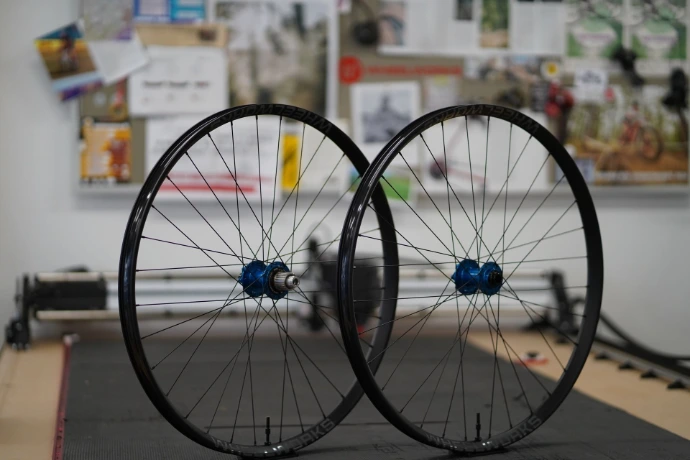

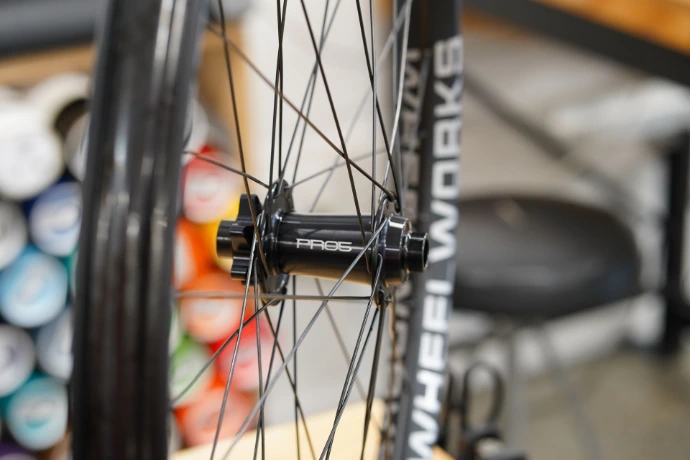

#newwheelworksday for Bradley
Spoke nipples: Black Brass

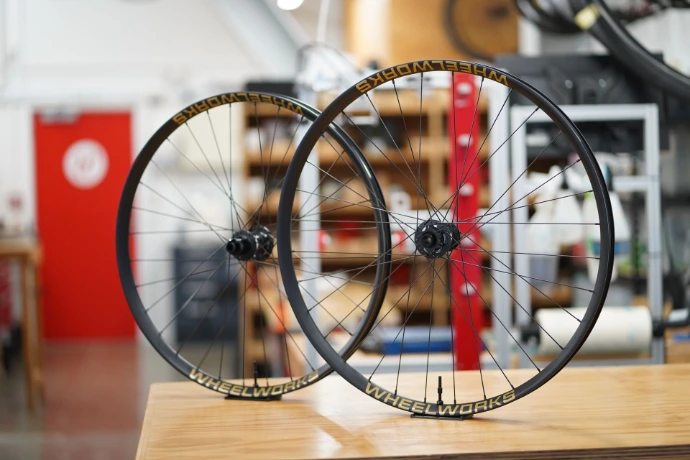

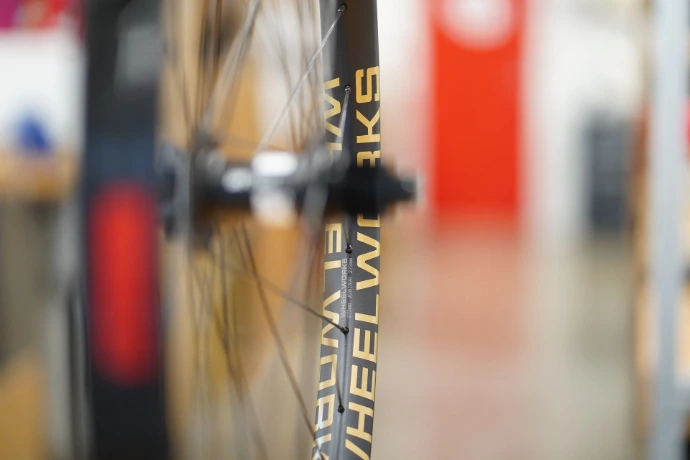

#newwheelworksday for Mark

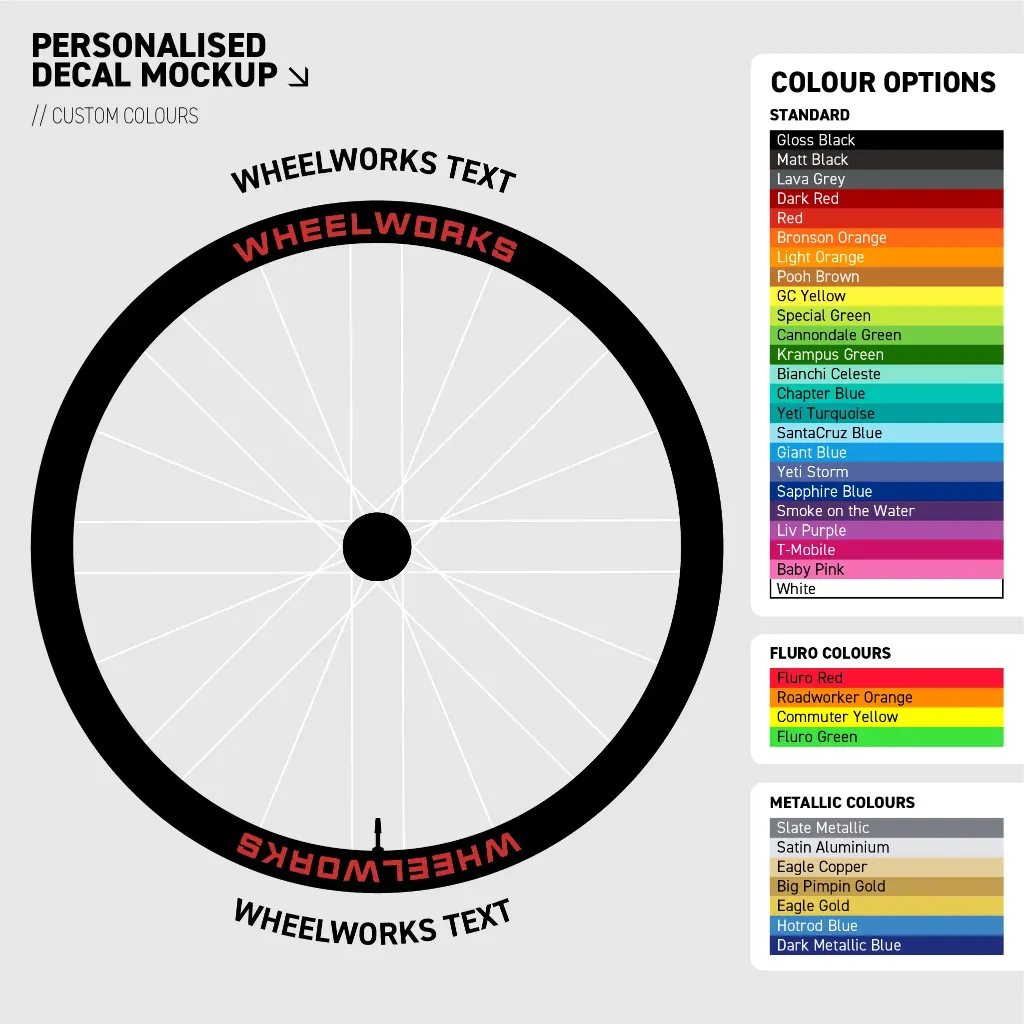

Colours used: Lava Grey
Spoke nipples: Black Brass

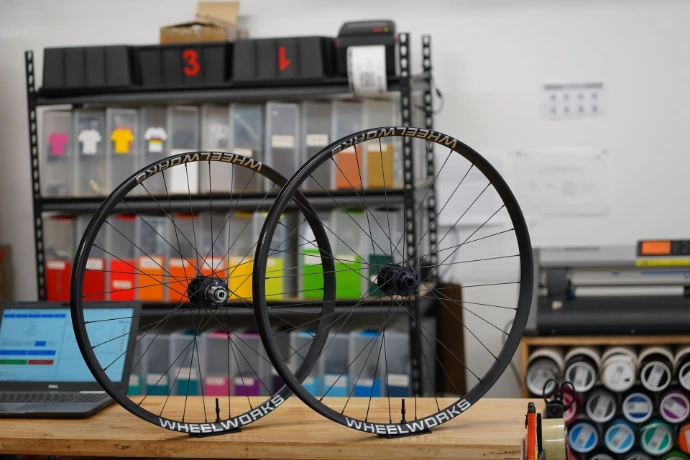

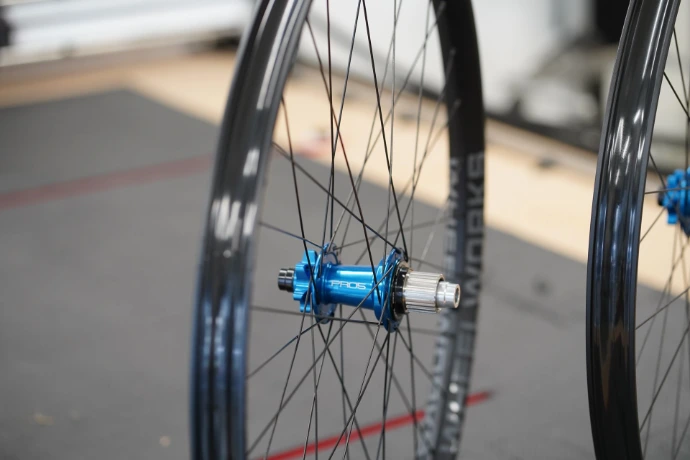

#newwheelworksday for Xanthe
Rear wheel:
