Specs
Designed for | Road | Gravel | XC | Trail | Light-weight e-bike |
Spoke count | 24, 28, 32 hole |
Max Rotor Size | 203mm |
Spoke Compatibility | J-Bend |

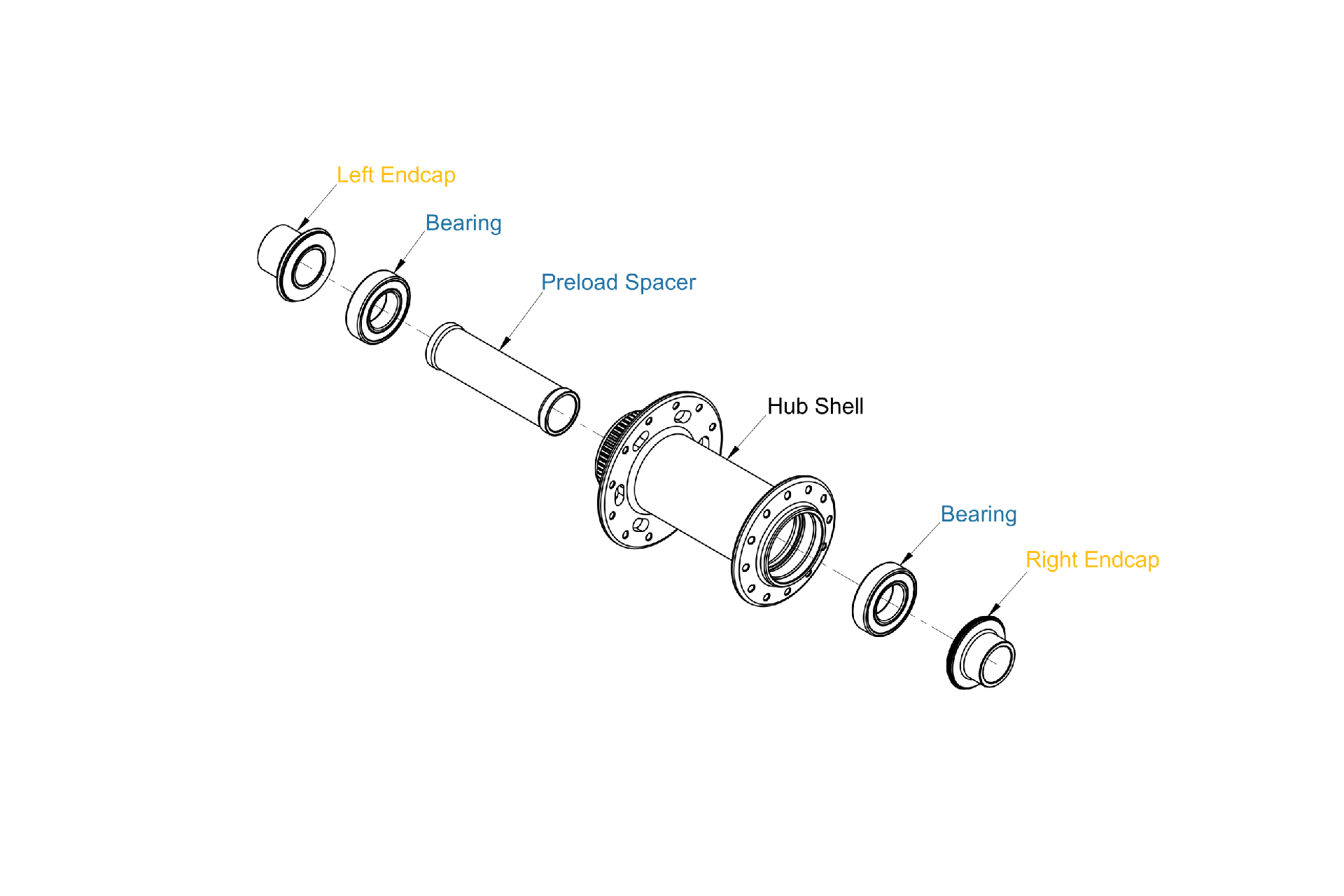

Service Guide & Exploded Diagram
Endcaps
Your Dial front hub uses interchangeable endcaps to work with different axle types.
Bearings
Left | Right | |
Hub Shell | 15x28x7mm | 15x28x7mm |
Revo Bearing, 15x28x7mm
Small Parts
Dial hub shell bearing spacer S20-73.81 (73.81mm length)
