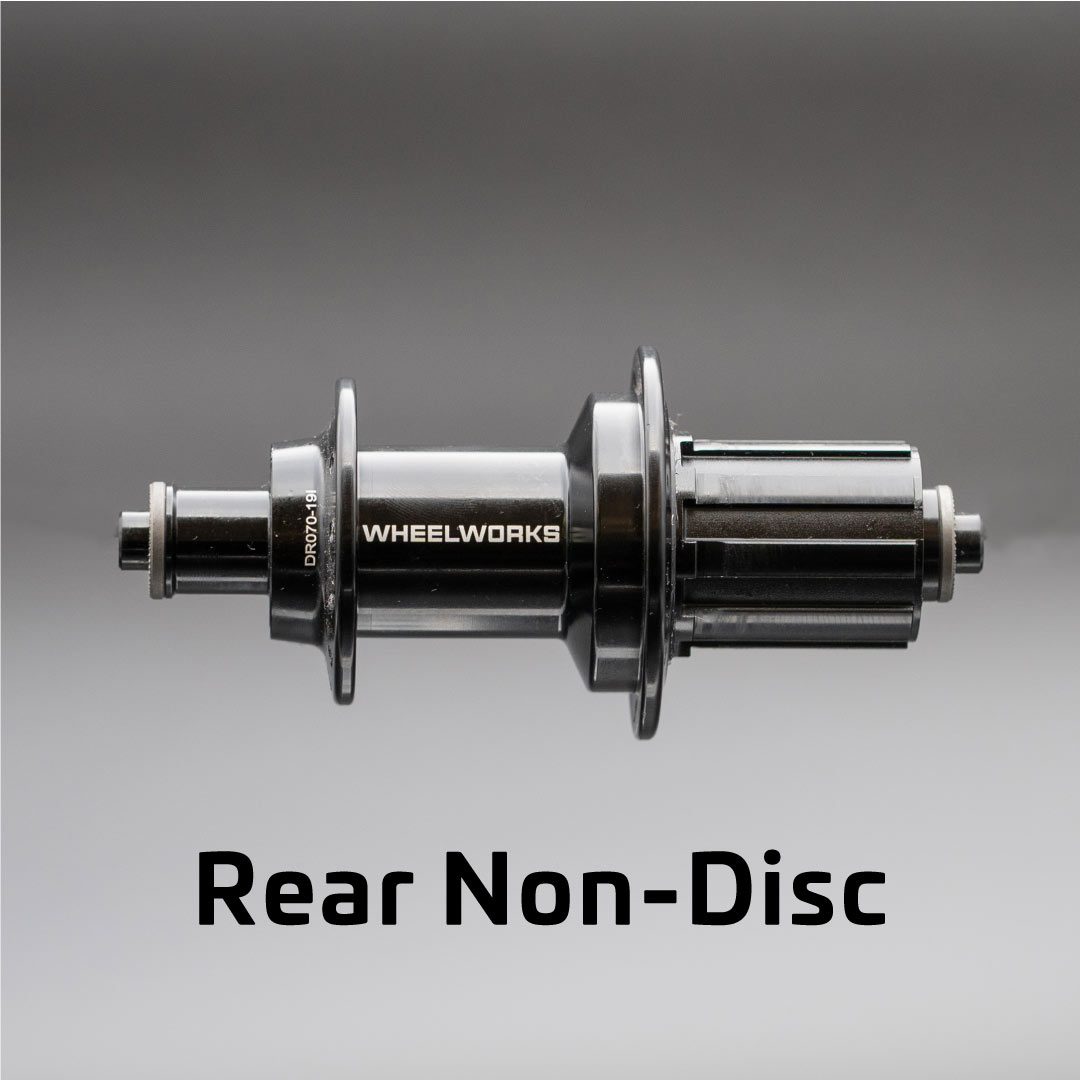

Dial Non-Disc Rear Hub

This page covers everything you need to own and maintain a Dial Non-Disc Rear Hub.

Dial Service Centre › Dial › Rear Hub › Non-Disc

Need more help?

We're proud of the service and support we offer on Dial hubs. Drop us a note or call if you need help servicing or maintaining your Dial

sales@wheelworks.co.nz | +64 4 387 3592

Specs

Designed for	Road \| Gravel \| XC \| Trail \| Light-weight e-bike
Spoke count	24 hole
Spoke Compatibility	J-Bend

Service Guide

Full step-by-step instructions for servicing this hub.

Service Guide: Rear Hub Quick Service →

Freehub Bodies

All of the complete freehub bodies compatible with this hub are shown below. Both the "Road / Gravel" and "Mountain / Adventure" freehub bodies are compatible and interchangeable with this hub - simply select the one best suited to how you're using your Dial hub.

Please note: freehub bodies do NOT include endcaps, as these will depend on the frame type you're using. See the Endcaps section below to check if you'll need a new endcap when swapping freehub body type.

Road and Gravel

Campagnolo N3W (72 engagement)

Sram XDR (36 engagement)

HG 36.8mm (36 engagement)

Mountain and Adventure

HG 35mm (72 engagement)

Shimano Microspline (72 engagement)

Sram XD (72 engagement)

HG 36.8mm (72 engagement)

Endcaps

Your Dial rear hub can be changed to fit many different hub widths, axle diameters, and freehub body types because of its modular design. Different endcaps might be required when either changing freehub body type, or when moving your Dial hub from one bike to another.

I'm using an HG, XD, XDR or Campagnolo 36mm freehub body

Dial HG, XD and XDR freehub bodies all use the same endcaps.

Endcaps for 130mm QR
